Greene, Charles E[zra] 1842- [from old catalog], Greene, Albert Emerson. [from old catalog] · Ann Arbor, Mich., Printed for the author · leaf 132

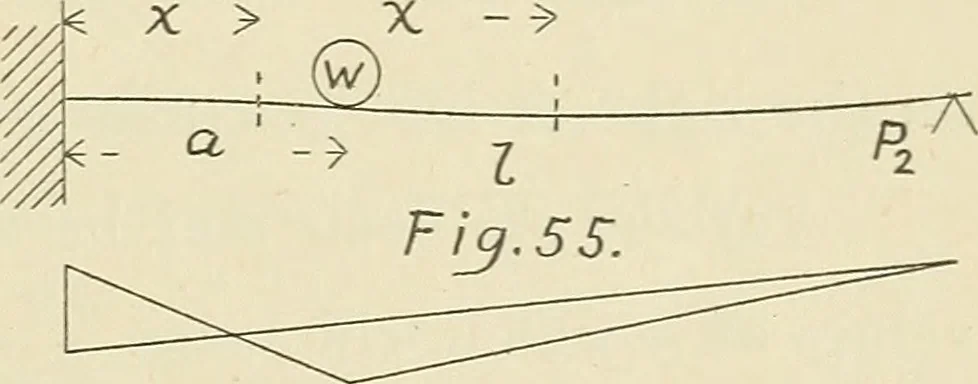

two equal, continuous spans has its middle support lowerthan those at its ends bv one-fifth of the above deflection, the mid-die reaction will be one-half the whole weight, the bending momentwill be zero at the middle, and the beam may be cut at that pointwithout disturbance of the forces. 121.… … Fo = -Tg a{l — a) {2I — a); The reaction at the supported end, being at presentunknown, will be denoted by P.,, and moments will be takenon the right of any section x. From lack of symmetry, sep-arate expressions must be written for segments on either sideof W. BETWEEN W AND FIXED END. Mx = Paa…
Mechanics, Applied · Strength of materials
