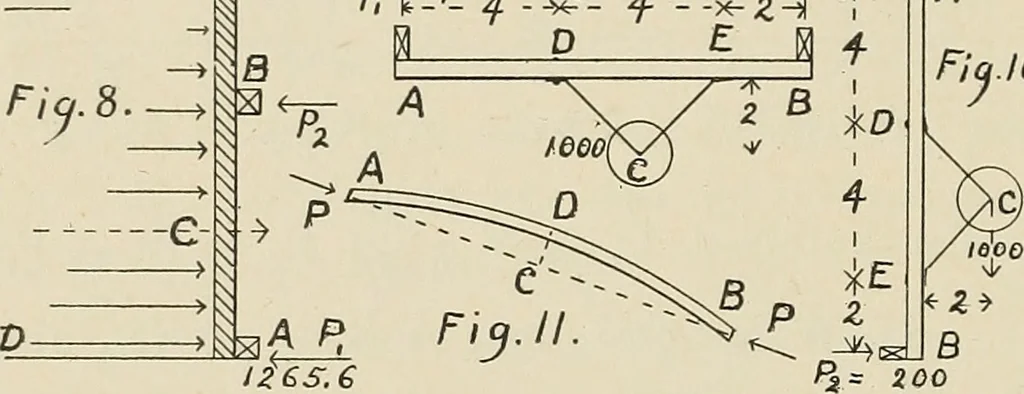

Example.—li A B = 40 ft., A D = 8 ft., D E = 16 ft., andthe load on D E is 200 lbs. per ft., W = 3,200 lbs., and C B = 24 ft. Therefore Pj = ^^^^ ——= 1,920 lbs., and P^ = 3,200 40 — 1,920 = 1,280 lbs. 46 STRUCTURAL MECHANICS. raE D £ K f P,--200A … JZ6S.6 If several weights are given in position and magnitude,the same process for finding the reactions, or forces exerted bythe points of support against the beam is appHcable. Exa7Jiples.—In Fig. 7, P^ = (100. 18-)- 200. i6-|- 150. 13+ 300 . II + 50 . 8 + 80 . o) ^ 16 = 665^^ lbs. P2 = 880 —665^…
