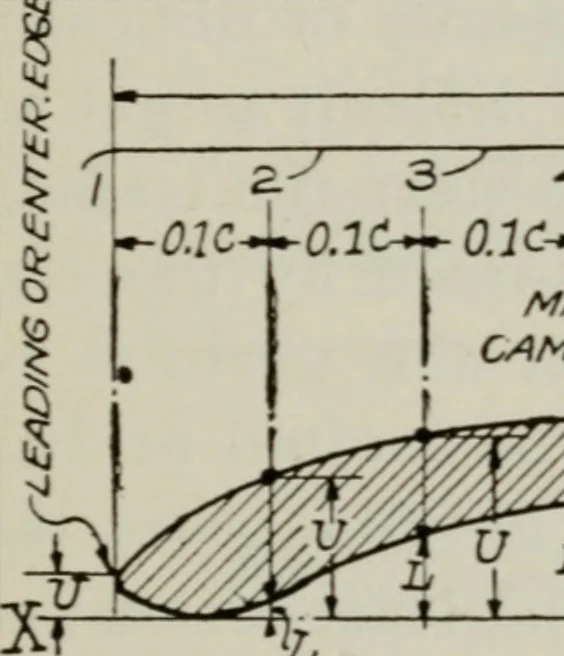

; that is, the WING SECTIONS 131 camber taken at the point of greatest depth. Thus, if wehear that a certain wing has a camber of 0.089, we takeit for granted that this is the camber at the deepest por-tion of the wing. The correct method would be to give0.089 as the maximum camber in order to… … -CHORD =C- STATION NUMBERS.S <2> -7 /o iLilA^ili.^ 2/ = LOV^ER ORDINATES CHOROAL OR DATUM LINE. XJ = UPPER OR DIN ATE5 • Fig. 1. Section Through a Typical Aerofoil or Wing, the Parts and Measure-ments Being Marked on the Section. The Horizontal Width orChord Is Divided Into 10 Equal Parts or…
