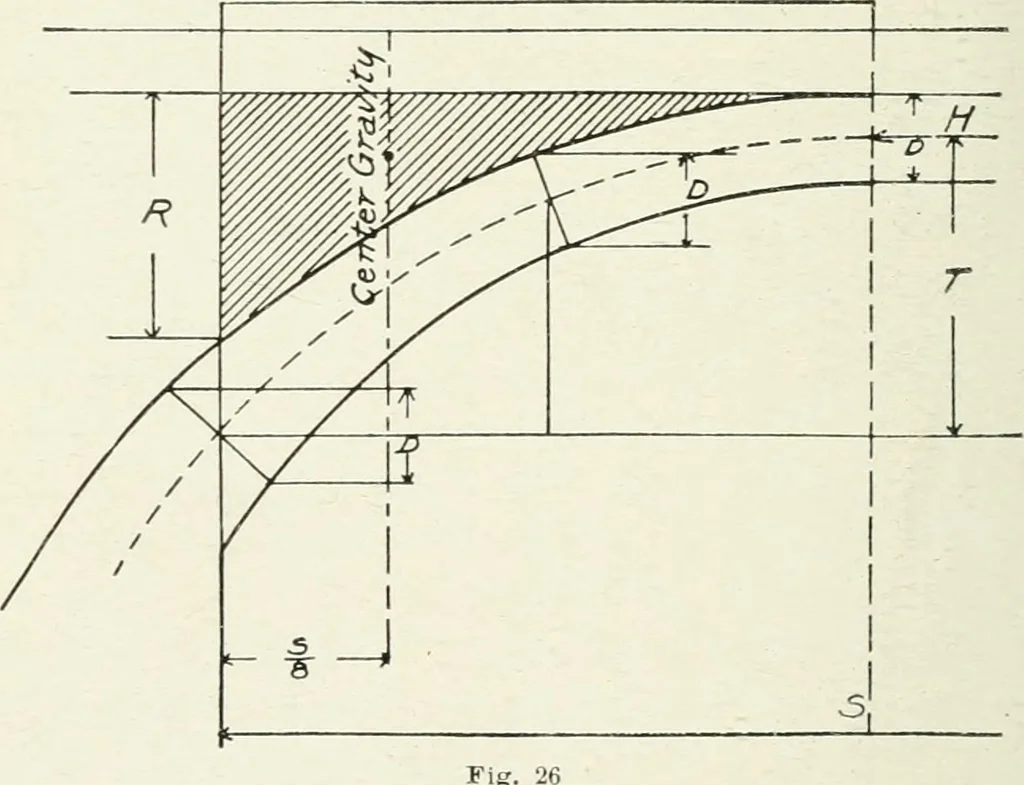

-tance between abutments. 134 COXCRETE BRIDGES AXD CVWERTS. For full dead and live loads, the line of pressureshould wherever possible, lie within the middlethird of the arch ring, and reinforcement used onlyfor resisting bending stresses due to partial liveloads. In Figure 26, the weight of the… … extrados and roadway level, as well as the uniformlive load, is also uniform, and the center bendingmoment for these uniform loads is expressed by theequation: TIT W S^ M= 8 For a parabolic arch, the spandrel area shown REINFORCED CONCRETE ARCH BRIDGES. 135 hatched in Figure 26 is equal to . The…
