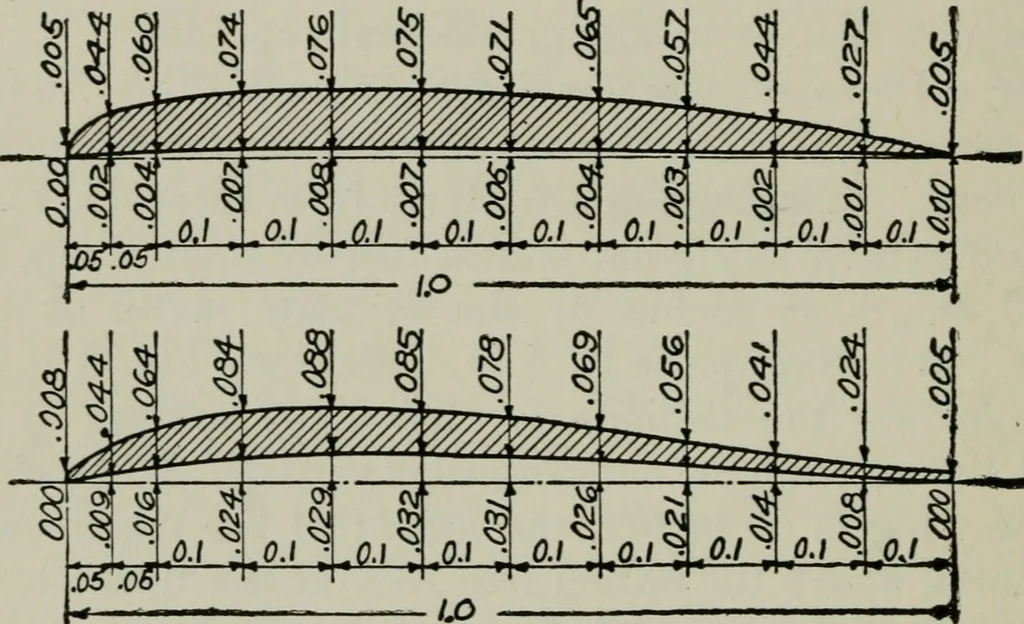

he center of pres-sure movement (C. P.) for the R. A. F.-3 section through 144 WING SECTIONS a range of angles varying from —2° to 20°. The firstcolumn at the left gives the angles of incidence (i), thecorresponding values for the lift (Ky) and the drag (Kx)being given in the second and third… … (<5) -RAV-3 Wm& Figs. 7-8. R.A.F. Wing Sections. Ordinates as Decimals of the Chord. indicating the distance of the C. P. from the entering edgeexpressed as a decimal part of the chord. As an example in the use of the table, let it be requiredto find the Hft and drag of the R. A. F.-3…
