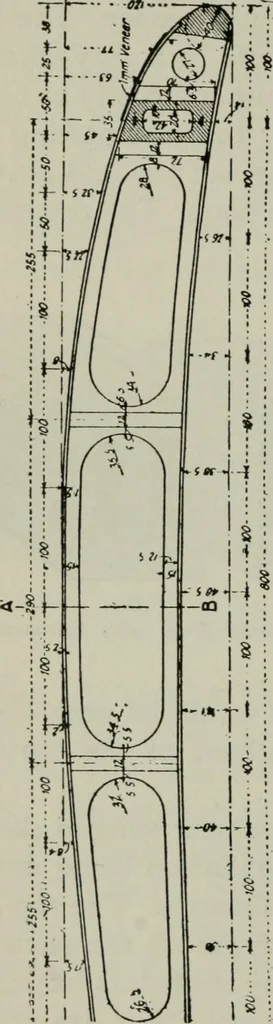

at eitherside of the spar. The hardwood dowel strips are at topand bottom as in Fig. B, and when placed in this posi-tion the glued joint is not subjected to the horizontalshear forces. The walls are thicker at top and bottom thanat the sides, in order to resist the greater vertical forces. 222… … i-L. j-L ^. Ib ^v Jli Leading Edge Construction. In the early Bleriot mono-planes the leading edge was of sheet aluminum, bent into**U form over the nose of the rib. In modern biplanes, WING DETAILS 223 this edge is generally of U form hollow spruce, about3/16 inch thick. Another favorite material…
