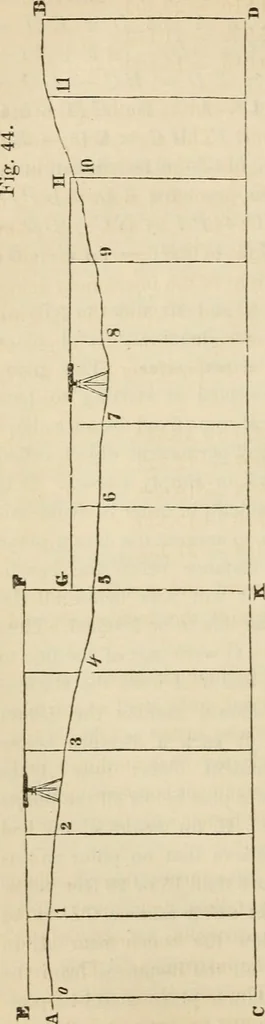

the height of this sta-tion above the datum plane, by sub-tracting this sight from the height ofthe instrument; for the height of thisstation is 0 C and OC=EC—EO.Thus if EO = 3 413, 0 C = 28.125 —3.413 = 24.712. In like manner, theheights of stations 1, 2, 3, 4, and 5 maybe found, by taking sights… … height of station 0 1 = 28.125 — 3.102 = 25.023, HEIGHTS AND SLOPE STAKES. 81 height of station 2 = 28.125 — 3.827 = 24.298, 3 := 28.125— 4.816 = 23.309, 4 = 28.125 — 6.952 = 21.173,« * 5 = 28.125 — 9.016 = 19.109. Next, set tlie level between stations 7 and 8, and as the height of sta-tion 5 is…
