Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study (1918)
Rathbun, John B · Chicago : Stanton and Van Vliet Co. · leaf 257

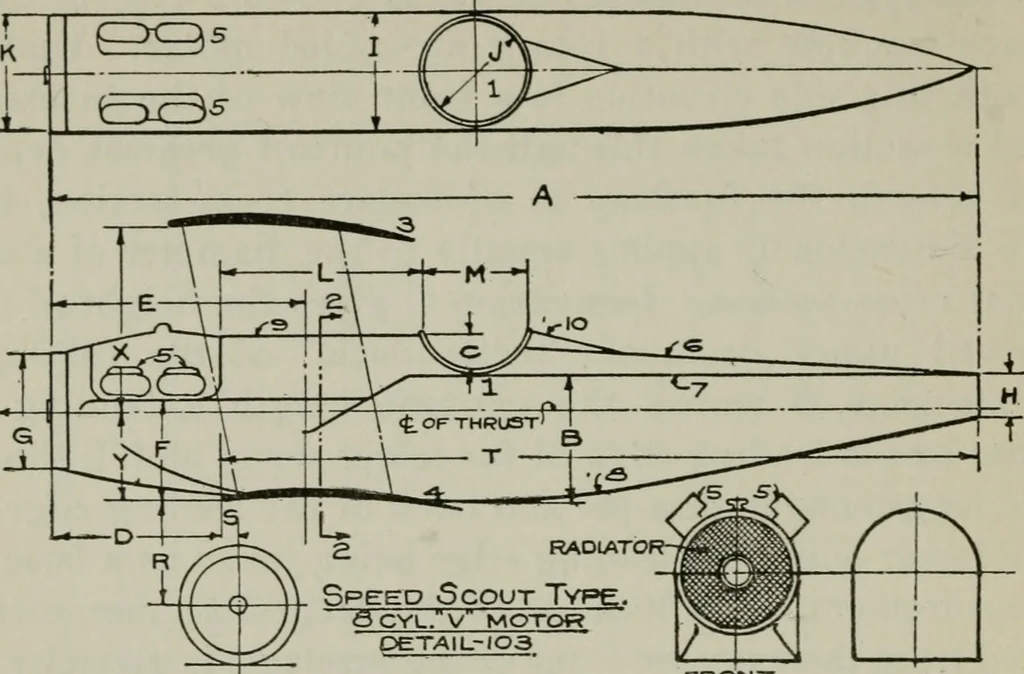

e pilot by 2. The topplane is 3 and the bottom plane 4. The engine is locatedby 5, and the top fuselage-rail, or longeron, by 7.Turtle deck is 6. FJg- 20 gives the diagrams of speed scout machines,both of the air-cooled and water-cooled types. These arethe small, fast, single seat machines so much… … ^^,ou S^cr^ou^^ H
Airplanes
