Mechanical drawing for industrial and high schools (1917)
Leeds, Charles Carley, 1870- [from old catalog] · New York, D. Van Nostrand company · leaf 80

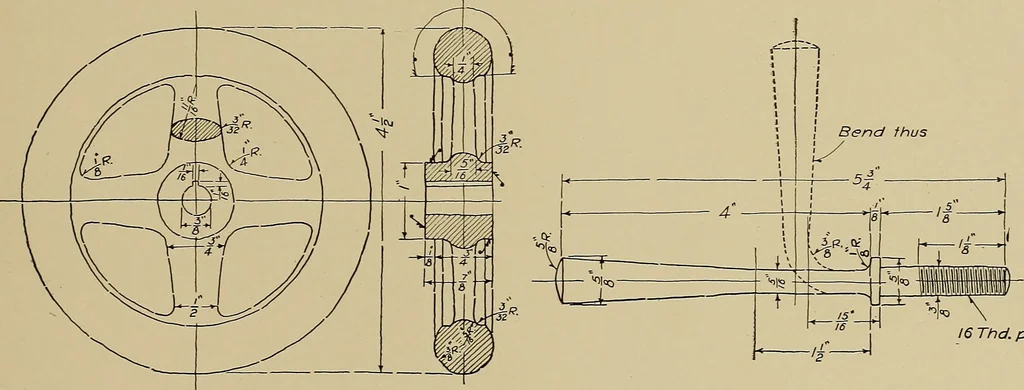

than at the other. By this time the student should be sufl&ciently familiar with handwheels to need no instruction on this subject. The binding screw shown is an illustration which shows the valueof a knowledge of shop practice. This screw is machined in a lathein the manner shown by the solid… … 16 Thd. per in. CLASS Indusfrial NAME John W. Roberts date Dec. 30- 07. 12 Speed LatheTailstock Details scALc Full Size ows.No. C.I OS 7 LESSON No. 35. TAILSTOCK DETAILS.—The rest of the details of the lathetailstock are shown on Drawing C-1028. The square-thread screw is used to move the spindle…
