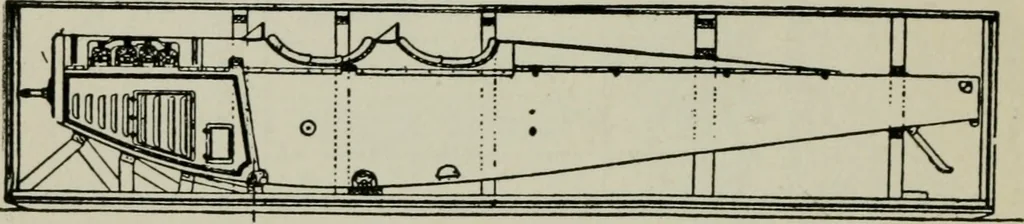

or and a circulcT frontradiator. While the front of the body is circular, it grad-ually fades out into a square cross-section at the rear.The lower machine is a Nieuport speed scout equippedwith a rotating cylinder air-cooled motor. In this scout,the diameter of the motor cowl is given by dimension… … Fig. 21. Curtiss J N 4-B Fuselage Boxed for Shipment. With some of the later speed scouts, the body entirelyfills the gap between the wings and the top plane isfastened directly to the top members of the fuselage.This makes windows necessary in the sides of the fuselage.When vertical water-cooled…
