The elasticity and resistance of the materials of engineering (1883)
Burr, William H. (William Hubert), 1851-1934 · New York, J. Wiley & sons · leaf 600

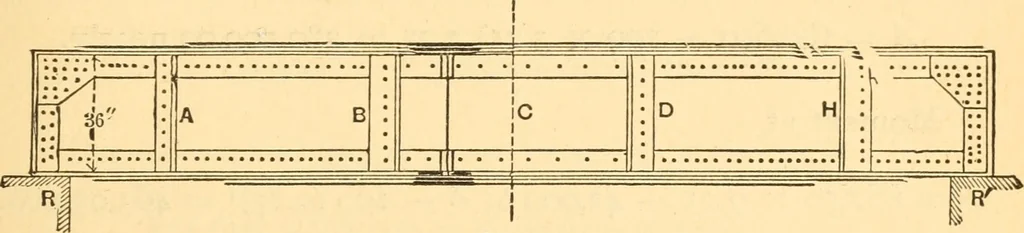

is 42,000.00 pounds. Art. 66,] DATA. 579 The following are some of the dimensions of the beam: Span RR = 26.5 feet. Depth of web plate = 36 inches.RII=RA = 3.25 feet. nH = AB = 6.00 feet. BB = 8.00feet. The web plate will be taken j\ inch thick. The method ofdetermining this thickness will be shown… … Fig.1 beam will then be the vertical distance between the centres ofgravity of the sections of the flanges, and each flange is to beconsidered as composed of two Ls and the ** cover* plate orplates only; no part of the web is to be included. Strictlyspeaking, then, the depth is variable ; but this…
Strength of materials · Building materials
