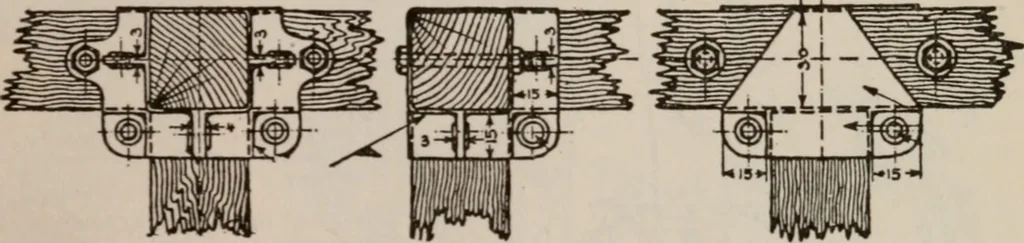

ajority of cases the horizontalthrust strut is a steel tube, with the hinged connectionbrazed to its outer ends. This is one of the most im-portant and heavily loaded connections on the machineand should be designed accordingly. Fig. Z7 shows a typical wing to fuselage connection ofthe hinge type.… … Fig. II. Fuselage Fittings of the Nieuport Monoplane. This forms the wing half of the connecting hinge. Theeyes are fastened to the fuselage hinge member (H) bymeans of the pin (E). This pin has a tapered end for easyentry into the joint, and is pierced with holes at the outerend for cotter pins or…
