Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study (1918)
Rathbun, John B · Chicago : Stanton and Van Vliet Co. · leaf 302

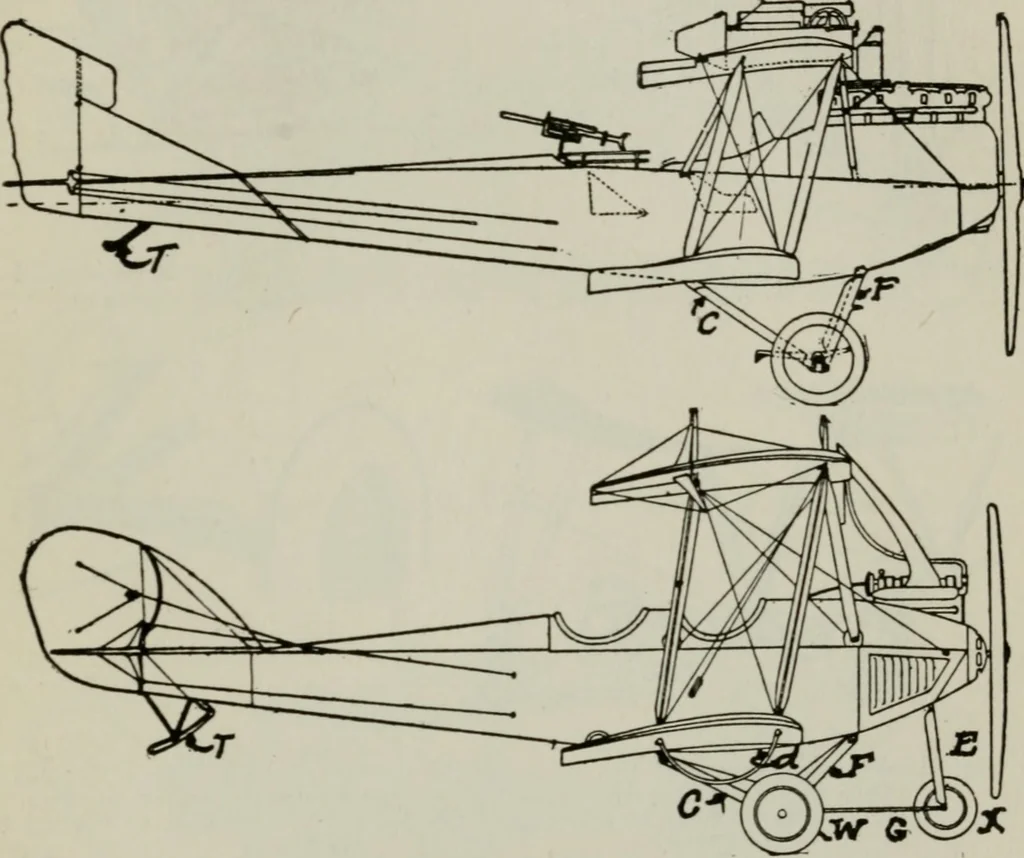

ndicated by T. The metal shod ash skid stick is hinged to the lowerface of the fuselage, and at the upper end is attached to astationary fuselage member through four turns of elastic CHASSIS CONSTRUCTION 291 cord. When the skid strikes an obstacle the rubber givesand allows the tail to move in… … Fig 4 (Below). Lawson Training Tractor Biplane. Fig. S (Above).ansa-Brandenburg Fighting Biplane Showing Chassis and Tail Skid (t). shows clearly the arrangement of the skids and the shockabsorbing suspension. A metal bridge is attached to theaxle, and a series of short rubber bands are used in…
