Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)

Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 328

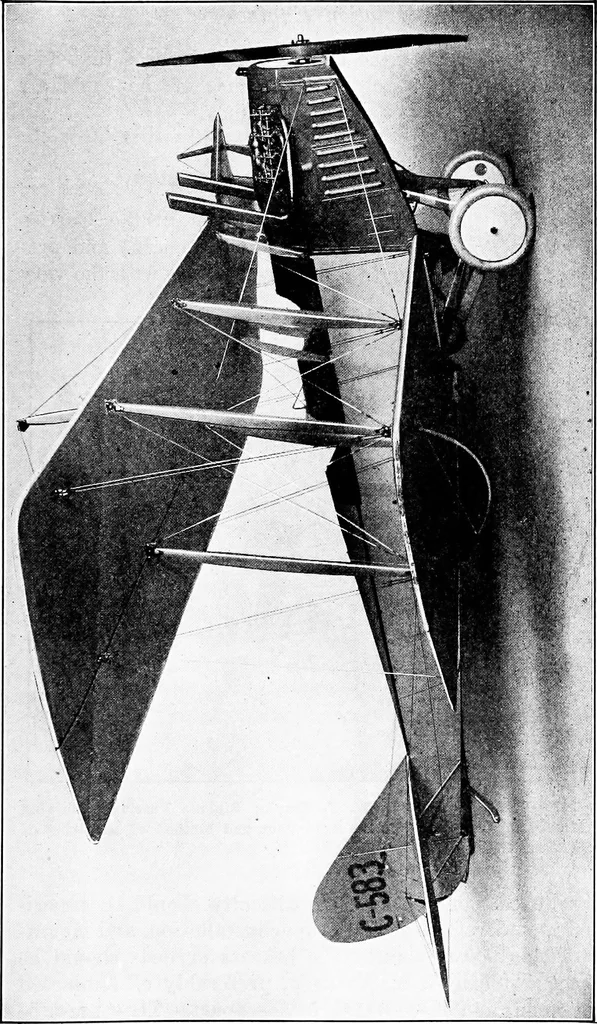

An illustration from Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes, 1917, leaf 328
doorswhich open and provide access to the carburetor, oil-gauge and other parts of the motor requiring inspection.The complete installation with the power plant enclosedis given at Fig. 146, and in this it will be observed thatthe exhaust pipes are connected to discharge membersthat lead the gases… … 327 328 Aviation Engines radiator just back of the tractor screw insures that ade-quate cooling will be obtained because of the rapid airflow due to the propeller slip stream. INSTALLATION OF CTJETISS 0X2 ENGINE The following instructions are given in the CurtissInstruction Book for installing the…
