Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study (1918)
Rathbun, John B · Chicago : Stanton and Van Vliet Co. · leaf 305

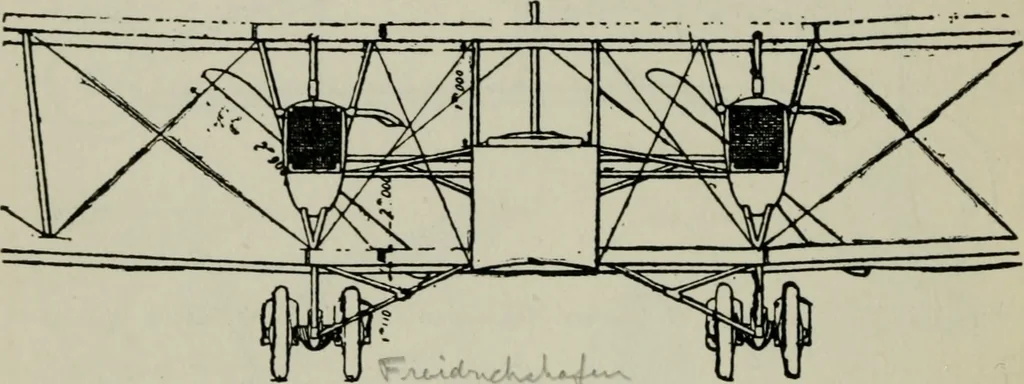

e attached betweenthe axle and the front vertical strut. One decided ad-vantage of the Standard construction is that the cordsare wound without crossing the strands, thus reducingcutting and wear between the cord turns. Fig. 13 is a variation of Fig. 12, the cord being wounddirectly around spools… … Fig. 14. Chassis for Twin Motored Biplane of Bombing Type. large Twin bombing plane. Two wheels are placeddirectly under each of the motor units so that a portion ofthe load is communicated to the chassis by tubes. Diag-onal tubes transmit the body load to the chassis. Folding Chassis. Owing to the…
Airplanes
