Aeroplane construction and operation; including notes on aeroplane design and aerodynamic calculation, materials, etc. A comprehensive illustrated manual of instruction for aeroplane constructors, aviators, aero-mechanics, flight officers and students. Adapted either for schools or home study (1918)
Rathbun, John B · Chicago : Stanton and Van Vliet Co. · leaf 346

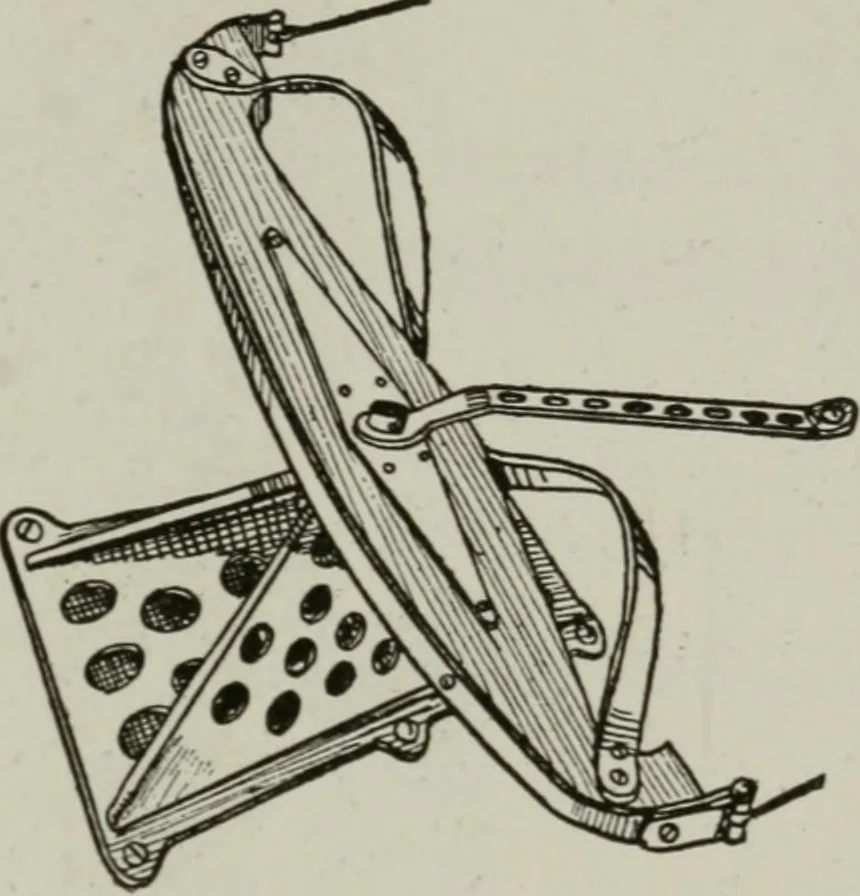

h a pulley andis connected with the aileron flaps in such a way thatturning the wheel toward the high wing tip causes it todescend. Pushing the yoke forward and away from theaviator causes the machine to descend, while a reversemovement raises the nose. The Dep control is reliable STABILITY 335 and… … Foot Rudder Bar Used in the Standard H-3. Courtesy Aerial Age. bar is connected with the rudder in such a way that theaeroplane turns opposite to the movement of the foot barin the manner of a boat. That is, pushing the right endof the bar forward causes the machine to turn towardthe right.
Airplanes
