Pomilio, Ottorino · New York, McGraw-Hill · leaf 22

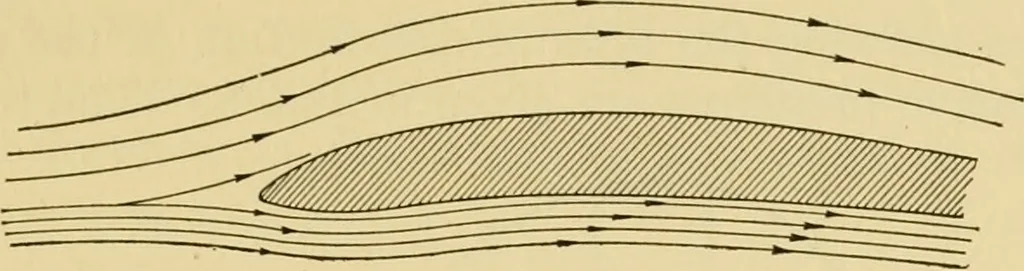

considerable head resistance and are thereforegreat consumers of energy. For that reason, the leadingedge should be designed with the same criterions as thoseadopted in the design of turbine blades. Figs. 5 and 6show the phenomenon schematically. Due to inertia,the air deviated above the wing tends… … Fig. -Leading edge of good efficiency. their path downward so as to flow along the top curvatureof the wing. A dynamic equilibrium is thereby establishedbetween the negative pressure and the centrifugal force of
