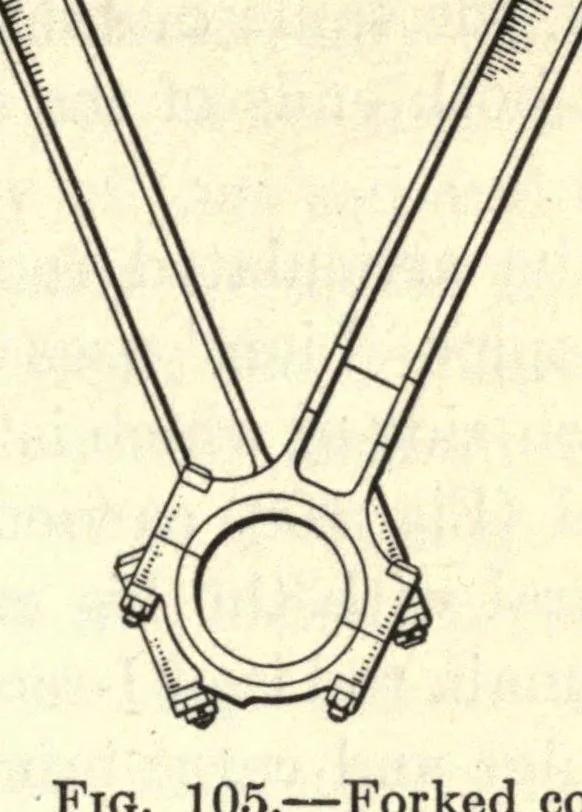

142 THE AIRPLANE ENGINE master rod is shown in Fig. 106 for the Benz 300, 60-deg. Vee engine. The rod is tubular; the pin for the small rod is held by two clamp screws. In the Renault engine (Fig. 107) the pin for … side rods are tubular and carry bronze bush- FIG. 107. — Articu- ings at both ends. Each side-rod pin is lated connecting rods of Renault engine. tapered at one end, fits into a tapered hole in the corresponding lug, and is drawn up tight by a bolt screwing into the pin at the taper end. In the…
