Aladdin Manual of construction : containing practical methods covering every step necessary in the erection of Aladdin houses, barns, garages, etc. / prepared and illustrated by David S. Betcone (1918)
Betcone, David S, Aladdin Company · Bay City, Mich. : Aladdin Co. · leaf 158

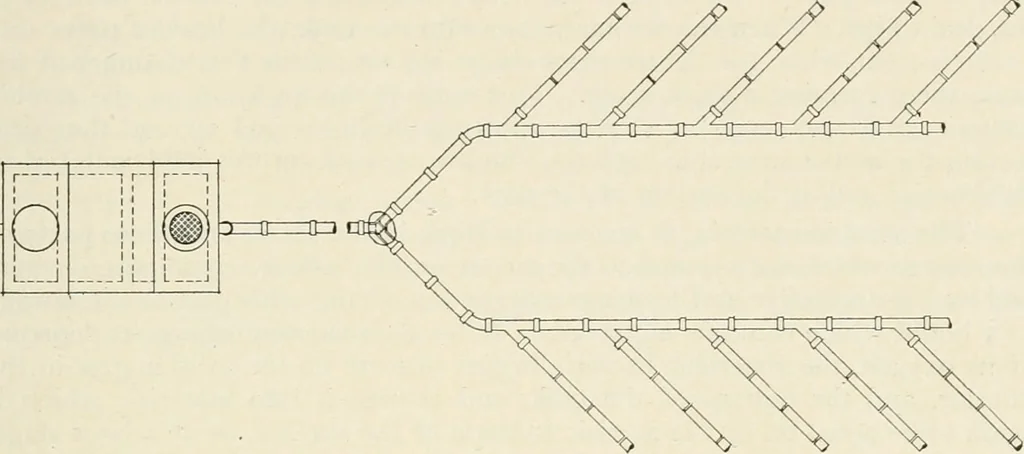

ould otherwise disturb the scum that forms on the surface of the fluid inthis chamber. The first compartment is closed off from the second by a wall as shownin Fig. 131. Connections between the two chambers exist thru the bent pipe.The second chamber should be well ventilated. It also contains a… … Fig. 132—Layout of tile field for septic sewage disposal. The connection between the second compartment and the drain usuallyconsists of an automatic siphon as shown in Fig. 131. This siphon works in-termittently, depending on the depth of the liquid in the second compartment.The pressure on top of…
Building
