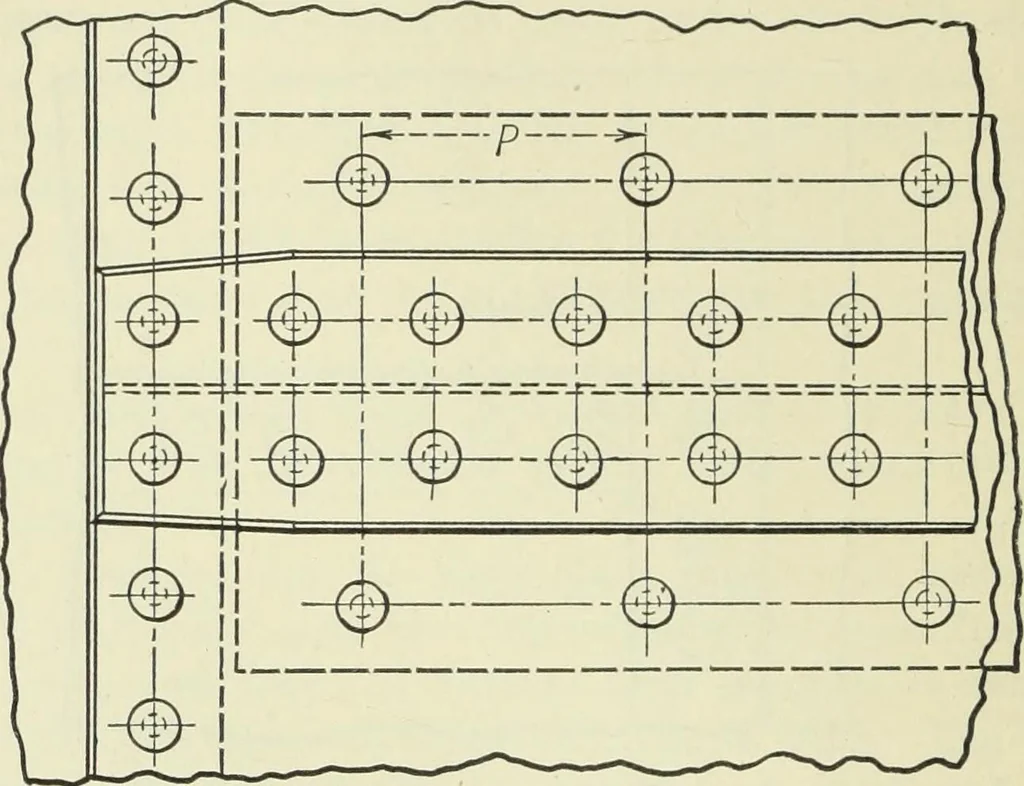

es in the outer row = (p — d) t X T.S.C = shearing strength of two rivets in double shear, plus the shearing strength of one rivet in single shear = NXSXa+nXsXa.D = strength of plate between rivet holes in the second row, plus the shearing strength of one rivet in single shear in the outer row = (p… … Fig. 37. Butt and Double Strap Joint, Double-Riveted. F = crushing strength of plate in front of two rivets, plus the crushing strength of butt strap in front of one rivet = NXdXtXc+nXdXbXc.G = crushing strength of plate in front of two rivets, plus the shearing strength of one rivet insingle shear…
