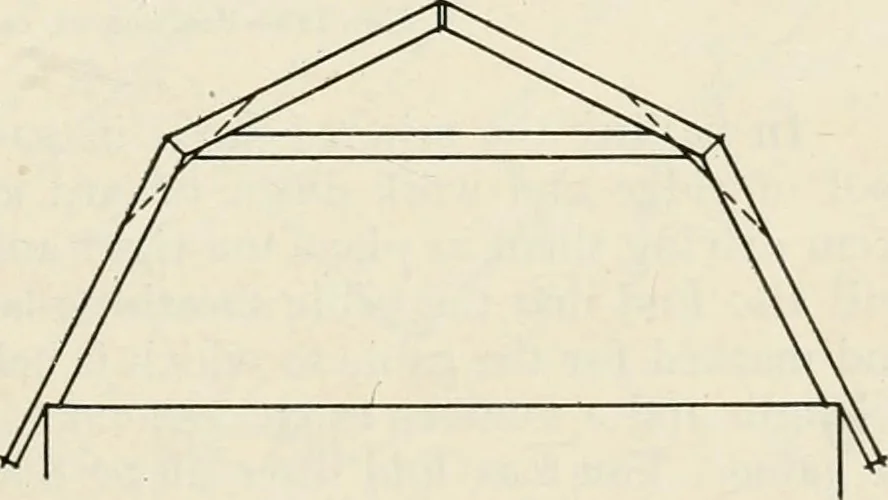

led in placeas the rafters are being erected. Place pieces of roof sheathingtemporarily over the rafters to keepthem lined up and spaced properly. Fig. 188 shows detail construc-tion of gambrel roof. Letter Aindicates lower rafters; B, upperrafters; C, ridge; D, tieplates; E, collar beams, andF… … 240 ALADDIN MANUAL OF CONSTRUCTION Collar Beams and Furring Strips When collar beams have been furnished to strengthen the roof or to formceiling joists over the rooms of a building which does not run up full twostories, you will find a cross section of roof on blue prints, which will showthe…
