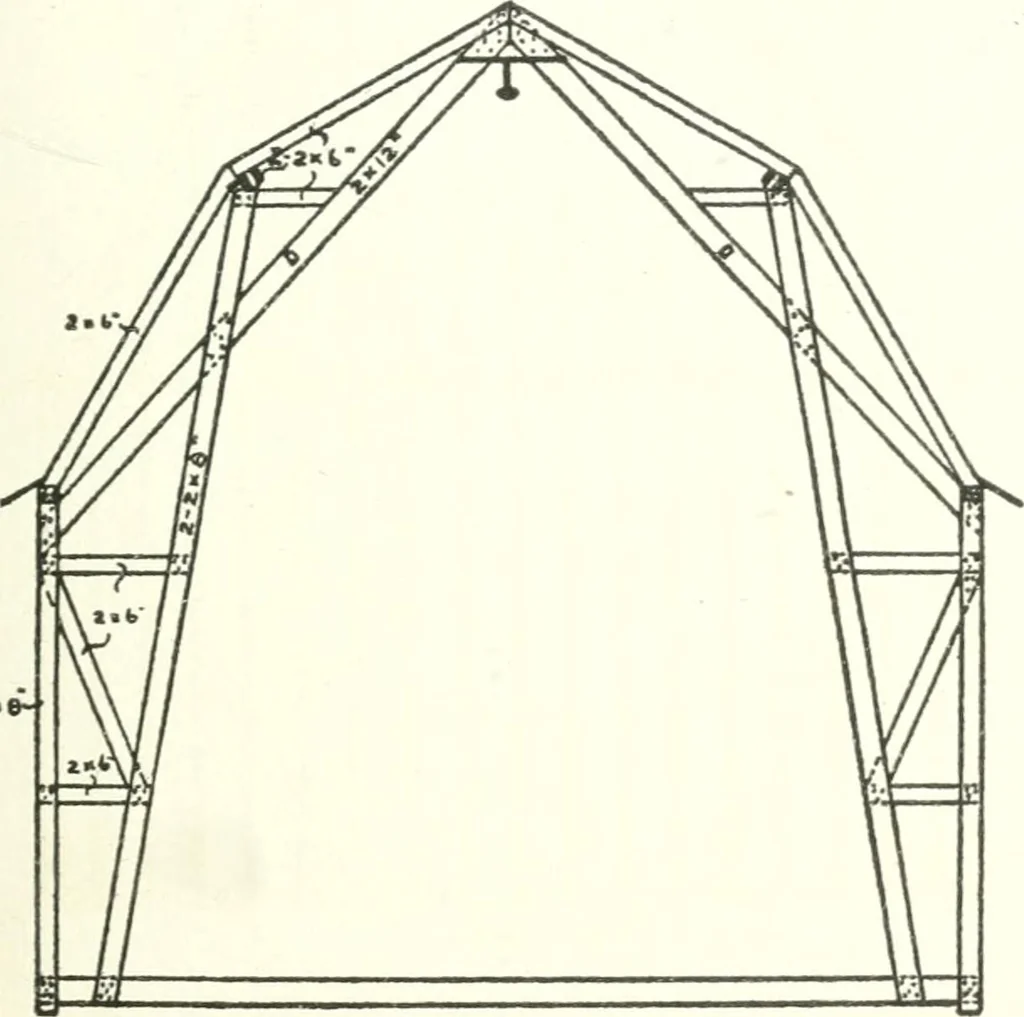

-Prame Construction PLANK-FRAMED BARNS With the scarcity of heavy timbers and con-sequent cost, it is time carpenters who are toerect barns should give some study to the newermethods of framing, where timber is from 6 to FRAMING 255 12 inches wide, and none thicker than 2 inches.The use of modern… … Fig. 132. Wind Bracing for Plank-Frame Barn. cated in Figs. 131, 132, and 133, is in every waysatisfactory, and is fully as strong as an old-fashioned frame made of timbers 8 to 12 inchessquare. It is about two-thirds as costly; andless experienced carpenters are required toerect it. 256 FRAMING In…
