Aladdin Manual of construction : containing practical methods covering every step necessary in the erection of Aladdin houses, barns, garages, etc. / prepared and illustrated by David S. Betcone (1918)
Betcone, David S, Aladdin Company · Bay City, Mich. : Aladdin Co. · leaf 68

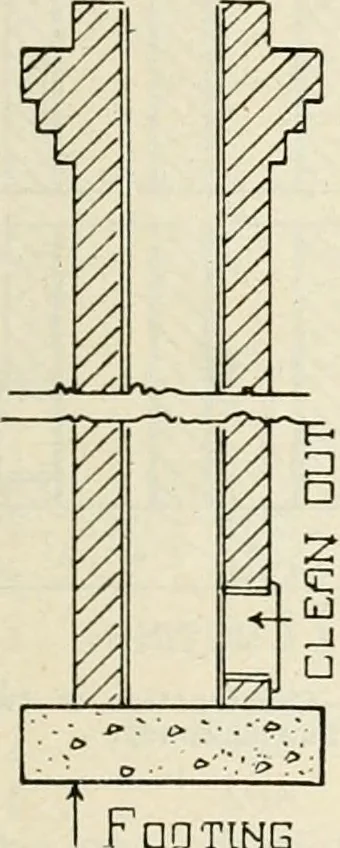

cid asis the case with galvanized iron or any metal flue lining.Flues smoke or draw poorly more often on account of theinsufficient height of the chimney than from any other cause.A chimney should always extend a little above the highestpoint of the buildings surrounding it, otherwise eddies… … Tig. 49—Faultychimney top. Footing Fig. 51—Con-struction of 8x8inch fluechimney. PI 11 1 1 , 1 68 ALADDIN MANUAL OF CONSTRUCTION ii with a hood, open on two sides, the sides parallel with the roof beingclosed. Be very careful that the hood is properly constructed. Fig. 49 showsa faulty top. Fig 50…
