Aladdin Manual of construction : containing practical methods covering every step necessary in the erection of Aladdin houses, barns, garages, etc. / prepared and illustrated by David S. Betcone (1918)
Betcone, David S, Aladdin Company · Bay City, Mich. : Aladdin Co. · leaf 79

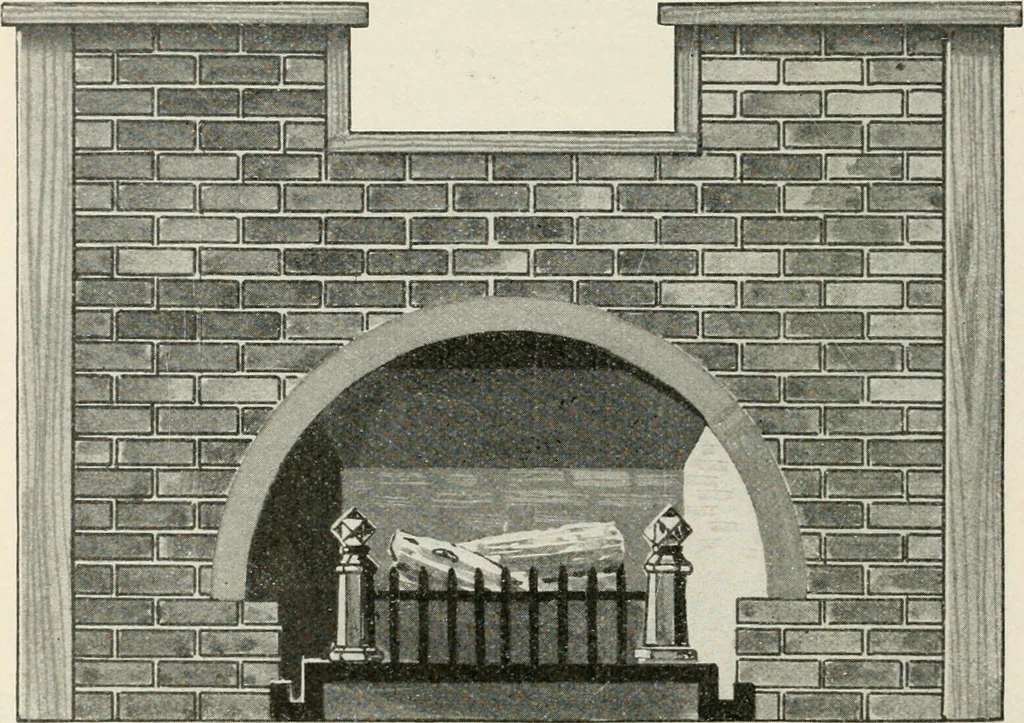

ill be governed by the size and height of the chimney. They should be madefrom 6 inches to 8 inches wider than the chimney itself, and about 10 inchesdeep if placed on good clay for an ordinary two-story dwelling house. The bottom of the chimney is usually built hollow in order to form areceptacle… … Fig. 61—Brick Fireplace, In buildings where wooden frames are used, the hearth of the fireplace isusually supported by an arch which is constructed of wood or brick. Thehearth of the fireplace is commonly 18 inches deep by the width of the chim-ney in length. The smoke chamber should not be larger…
