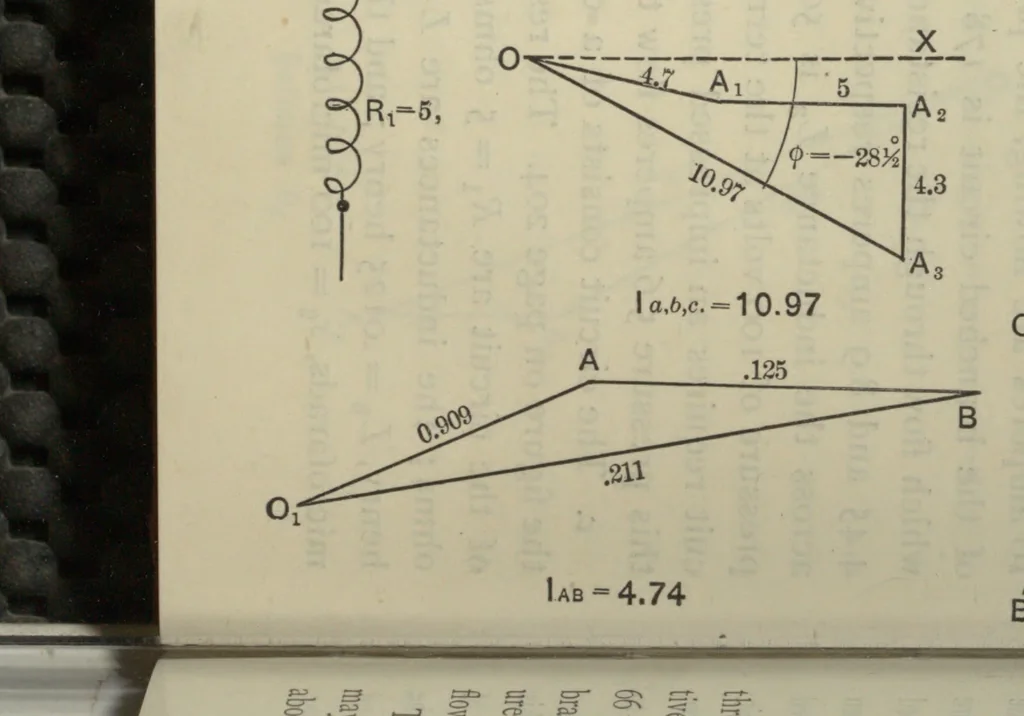

the terminals of the divided cir-cuit requires an impressed pressure of 76 volts. Withthis pressure 5.6 amperes flow through the circuit. c. The circuit consists of a combination as shown inthe figure on page 204. The resistances of the branchesof the circuit are R1 = 5 ohms, R^ = 10 ohms, 7?3 =… … QQ METHODS OF SOLVING PROBLEMS. 205 The diagrams show the impedance of the branchedpart of the circuit to be 4.74 ohms, and its lag angle is— 10° 12. From the complete diagrams it is seen thatthe joint impedance of the whole circuit is 10.97 ohms,and the total current is 28° 25 ahead of the…
