Hatfield, Robert Griffith, 1815-1879. [from old catalog] · New York & London, Wiley and Putnam · leaf 47

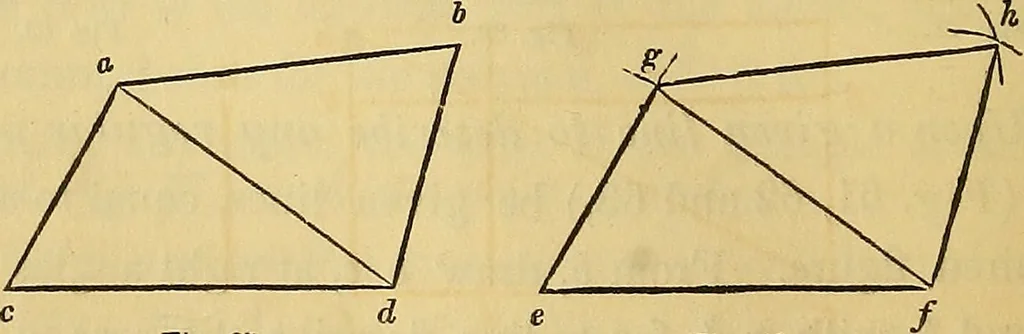

Fig. 64. 99.— To construct a triangle whose sides shall he severallyequal to three given lines. Let a, b and c, {Fig. 64,) be thegiven lines. Draw the line, d e, and make it equal to c ; upone, with b for radius, describe an arc at/; upon d, with a forradius, describe an arc intersecting the other… … Fig. 65. Fig. 66. PRACTICAL GEOMETRY. 33 100.—To construct a figure eqtial to a given, right-lined figure. Let ah c d, {Fig- 65,) be the given figure. Make e/, {Fig. 66,) equal to c d ; upon /, with d a for radius, describe an arc at g; upon e, with c a for radius, describe an arc intersecting the…
Carpentry · Architecture
