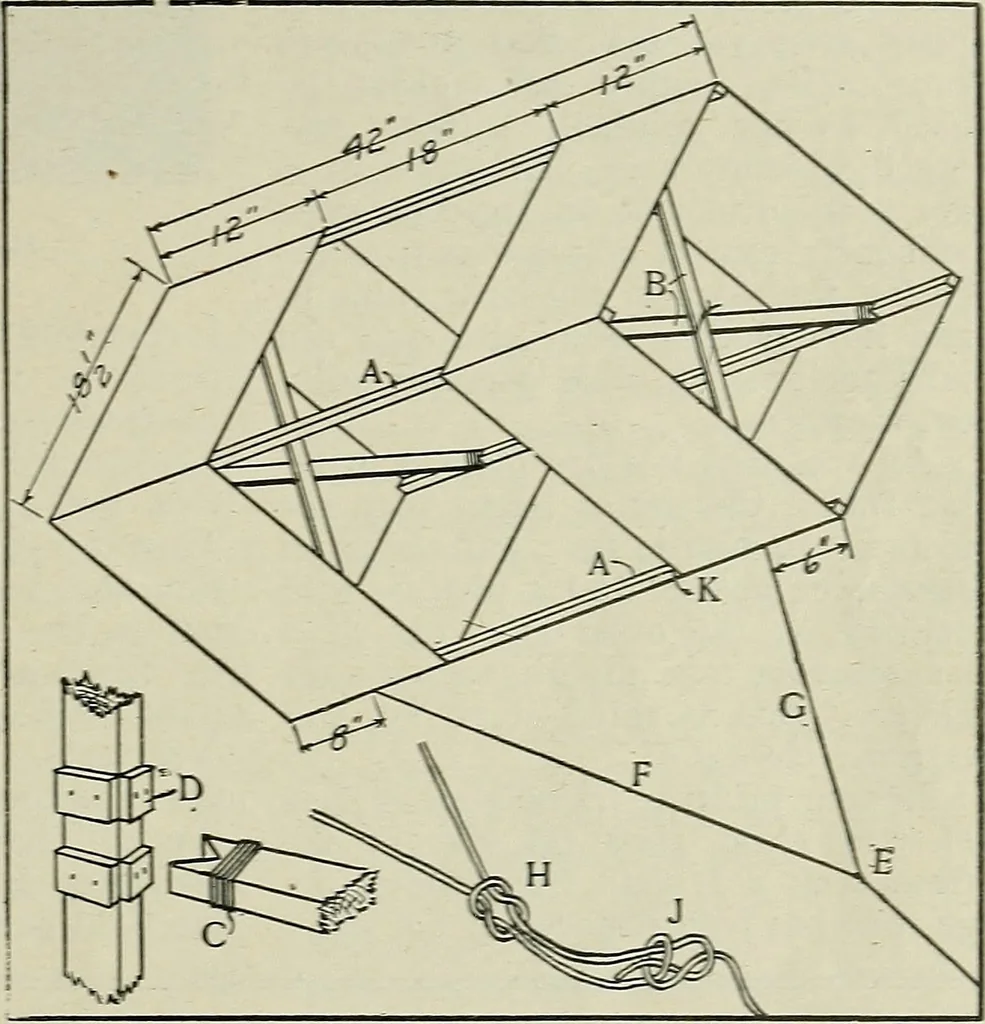

slightly bowed when put in posi-tion, thus holding the cloth out tautand fl? They should be tied to-gether at the points of intersectionand the ends should be wound withcoarse harness makers thread, as shown at C, to prevent splitting. Thesmall guards, D, are nailed or gluedto the longitudinal… … rolled up for convenience in carrying.The bridle knots, E, are shown indetail at H and J. H is a squareknot, which may be easily loosenedand shifted to a different position onthe bridle, thus adjusting the lengthsof F and G. A bowline knot shouldbe tied at J, as shown, to preventslipping. If the…
