The American house-carpenter; a treatise on the art of building, and the strength of materials (1873)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 150

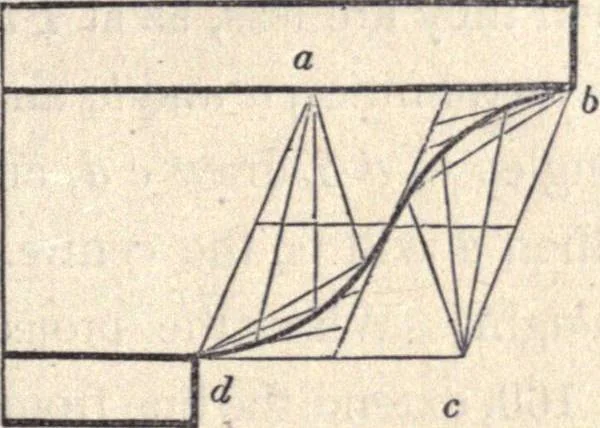

Fig. 53 Fig. 157. 245.— To describe the Grecian cavetto, (Fig. 157 and 158,)having the height and projection given, see Art. 118. … a ! I 1 J d 60. Fig.l Fig. 159. 246.— To describe the Grecian cyma-recta. When the pro-jection is more than the height, as at Fig. 150, make a b equalto the .height, and divide q b c d into 4 equal parallelograms;then proceed as directed in note to Art. 118. When the projec-tion is less than the…
Carpentry · Architecture
