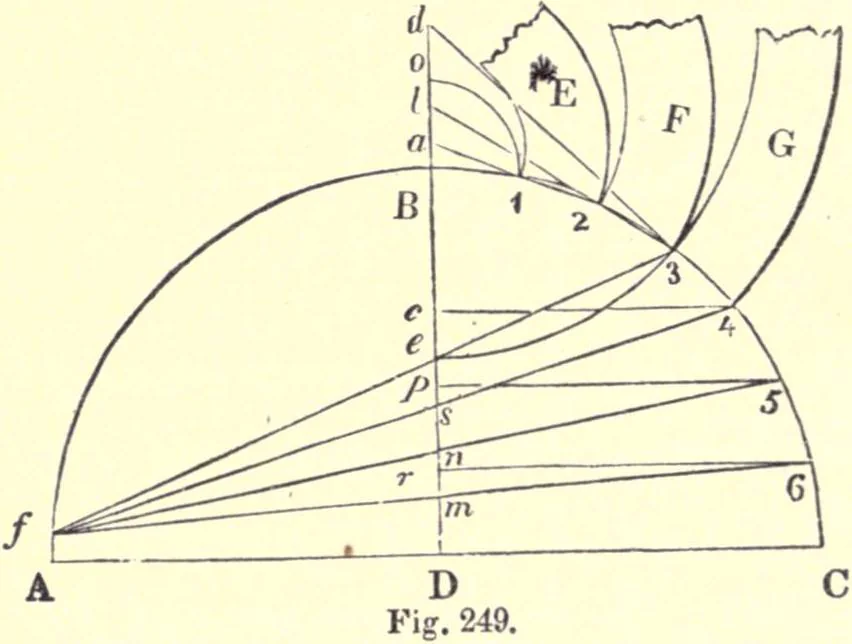

side of a c, equalto d o, e 1, &c., on the upper side ; trace a curve through thepoints, o, 1, 2, 3, 4, c, on each side of c? c ;. then o c o will bethe proper shape for the board. By dividing the circumference ofthe base, A, into equal parts, and making the bottom, o d o, of theboard of a size… … 397.— To find the curve of the boards when laid in horizon-tal courses. Let ABC, (Fig. 249,) be the section of a givendome, and D B its axis. Divide B C into as many parts asthere are to be courses of boards, in the points, 1, 2, 3, &e. ithrough 1 and 2. draw a line to meet the axis extended at…
