The American house-carpenter; a treatise on the art of building, and the strength of materials (1873)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 363

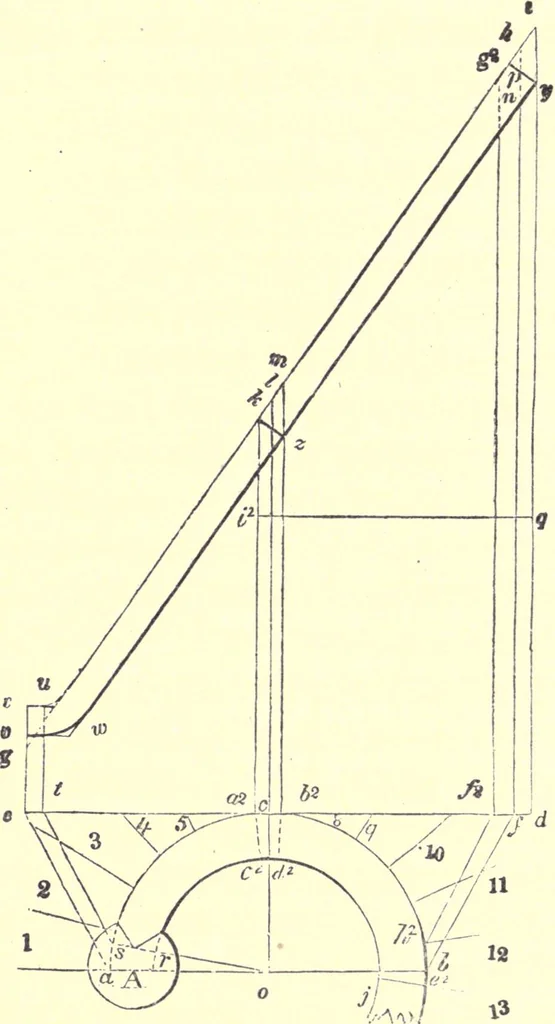

ngle at u ; at a distance equal to the thickness of * In the above, the references, a2, &*, &c., are introduced for the first time. During thelime taken to refer to the figure, the memory of the form of these may pass from the mind,While that of the sound alone remains; they mi y then be… … Fig. 805. the rail, draw v w y, parallel to x u i; from the centre of the plan,o, draw o l: at right angles to e d ; bisect h n in p, and through7?, at right angles tog- i, draw a line for the joint; in the samemanner, draw the joint at k ; then x y will be the falling-mouldfor that part of the…
Carpentry · Architecture
