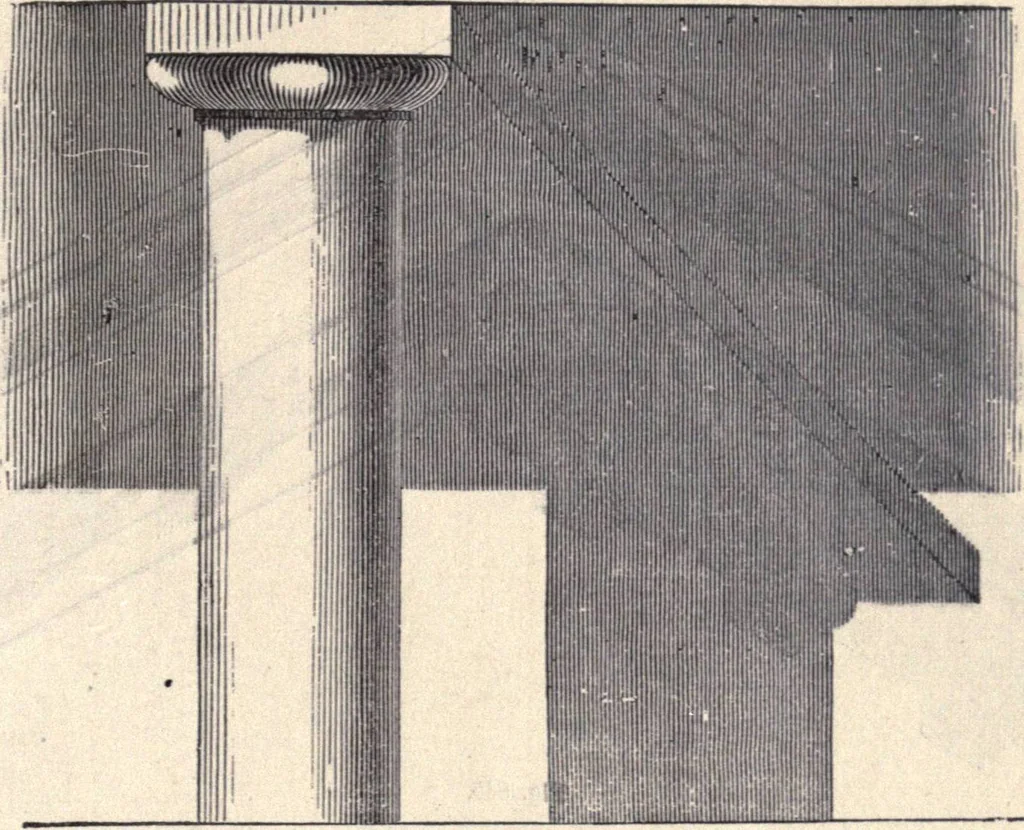

Fig. 862. rays from a and b, (Fig. 362,) and find the point, e, as in theprevious examples; from d, draw the ray, d e, and from e, thehorizontal line, e f; tangical to the curve at g and h, draw therays, g j and h i, and from i and j, erect the perpendiculars, i Iand^ k; from m and n, draw the… … Fig. S63. Fig. 363 is an example of the same kind as the last, with allihe shadows filled in, according to the lines obtained in the pre-ceding figure.
