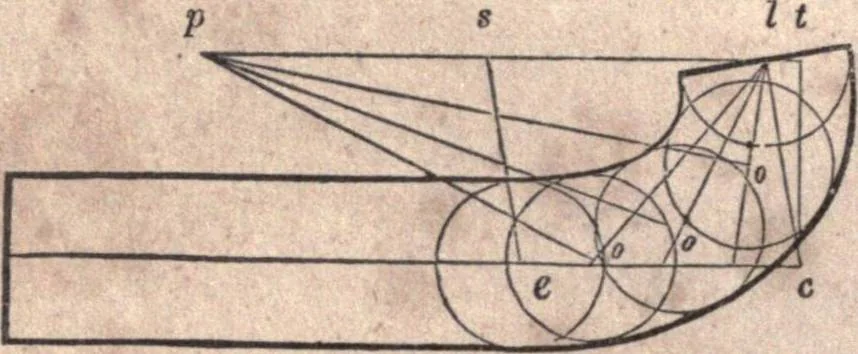

Tig 264. 369.—CASE 2.— When the cylinder is large. Fiff. 264 re- 214 AMERICAN HOUSE-CARPENTER. presents a plan and a vertical section of a line passing through thecentre of the rail as before. From b, draw b k, parallel to cd ; ex-tend the lines, i d and^ e, until they meet kbink and/; from n,draw… … Fijr. 265. , draw c t, at right angles to e c, and equal to c t at Fig. 264 ; fromt, draw t p, parallel to c e, and make 11 equal to 11 at Fig. 264 :complete the parallelogram, e c I s, and find the points, o, o, o, asbefore; then describe the circles and complete the mould as inFig. 262. The…
