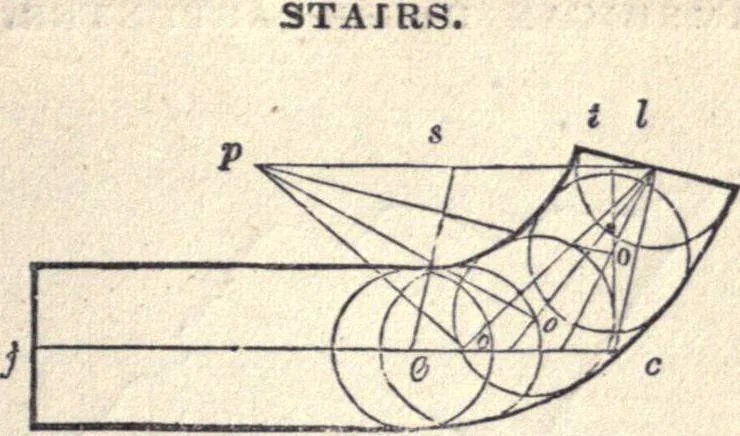

line, e f, being the platform ; and a b c isthe plan of a line passing through the centre of the rail aroundthe cylinder. Through i and </, draw i k, and through j and e,draw^ k ; from k, draw k I, parallel to f e ; from 6, draw b m,parallel tog d; from I, draw I r, parallel to kj ; from w, draw… … 327 Fig. 293. equal to c t at Fig. 292 ; through t, draw p I, parallel toj e, andmake 11 equal to 11 at Fig. 292 ; join I and c, and complete theparallelogram, eels; find the points, o, o, o, according to Art.118 ; upon e, o, o, o, and J. successively, with a radius equal tohalf the width of the…
