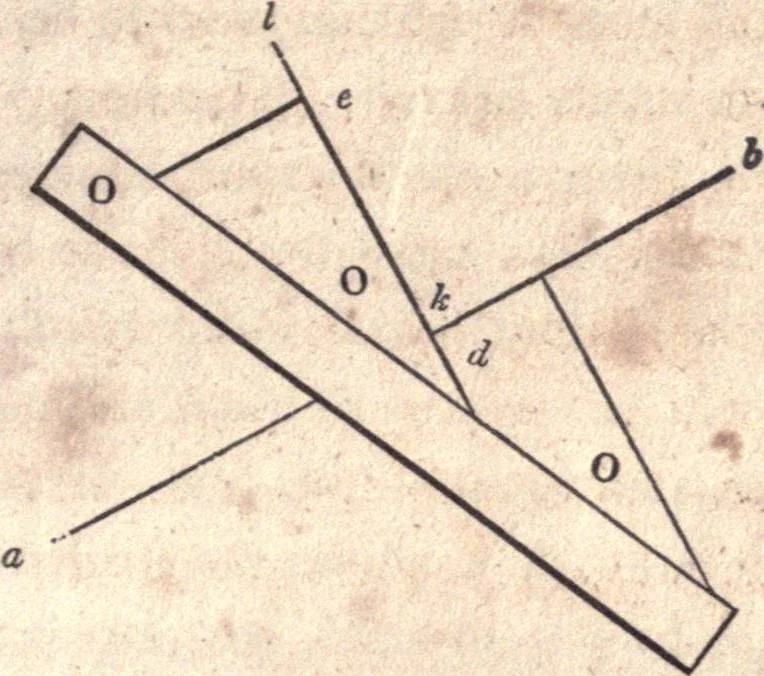

—To draw a line, as k I, (Fig. 3,) perpendicular to another,as a b, set the shortest edge of the set-square at the line, a b;place the ruler against the longest side, (the hypothenuse of theright-angled triangle ;) hold the ruler firmly, and slide the set-square along until the side, e d touches… … Fig. X 13.—In drawing a problem, proceed, with the pencil sharpened» a point, to lay down the several lines until the whole figure iscompleted; observing to let the lines cross each other at theseveral angles, instead of merely meeting. By this, the lengthof every line will be clearly defined. With…
