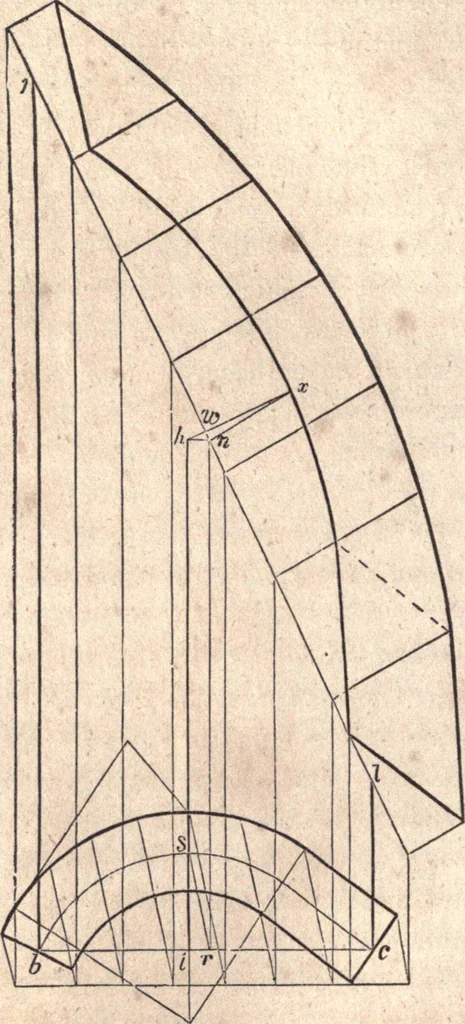

x will be the bevil for the upperordinates, upon which the face-mould is found as in Case 1. 388.—Elucidation of the foregoing method.—This methodof finding the face-moulds for the handrail ing of winding stairs,being founded on principles which govern cylindric sections, maybe illustrated by the… … Fig. 285. in Fig. 286 obtuse, and in Fig. 287 acute. Upon the base, de-scribe the semi-circle, b s c ; from the centre, i, draw i s, at rightangles to b c ; from s, draw 5 #, at right angles to e d, and from i,draw i h, at right angles to b c ; make i h equal to 5 ar, and joinh and x ; then, h and…
