The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry (1852)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 257

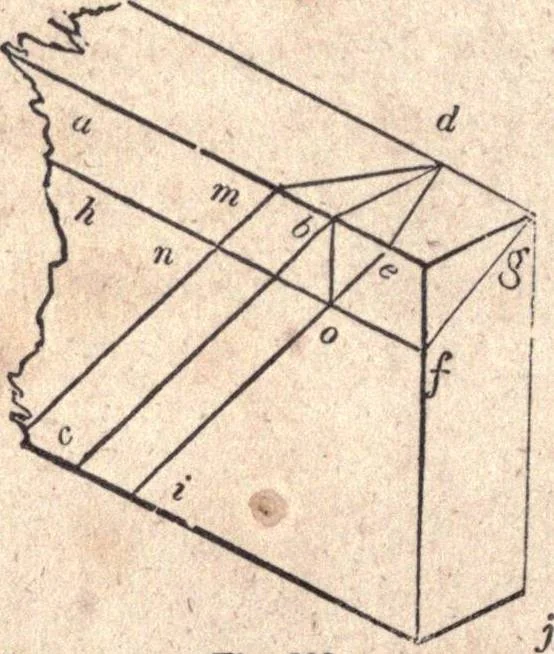

ed edge of the plank, which reaches from p to w,is supposed to be in the plane of the paper, and the point, a, tobe above the plane of the paper as much as a, in Fig. 289, is dis-tant from the line, w p ; and the plank to be revolved on p b asan axis until the line, p w, falls below the plane of… … Fig. 292. 391.— To find the bevils for splayed work. The principleemployed in the last figure is one that will serve to find the bevilsfor splayed work—such as hoppers, bread-trays, &c.—and a wayof applying it to that purpose had better, perhaps, be introducedin this connection. In Fig. 292, a…
Carpentry · Architecture
Internet Archive · California Digital Library · Public Domain Mark 1.0. Free to use for anything.
