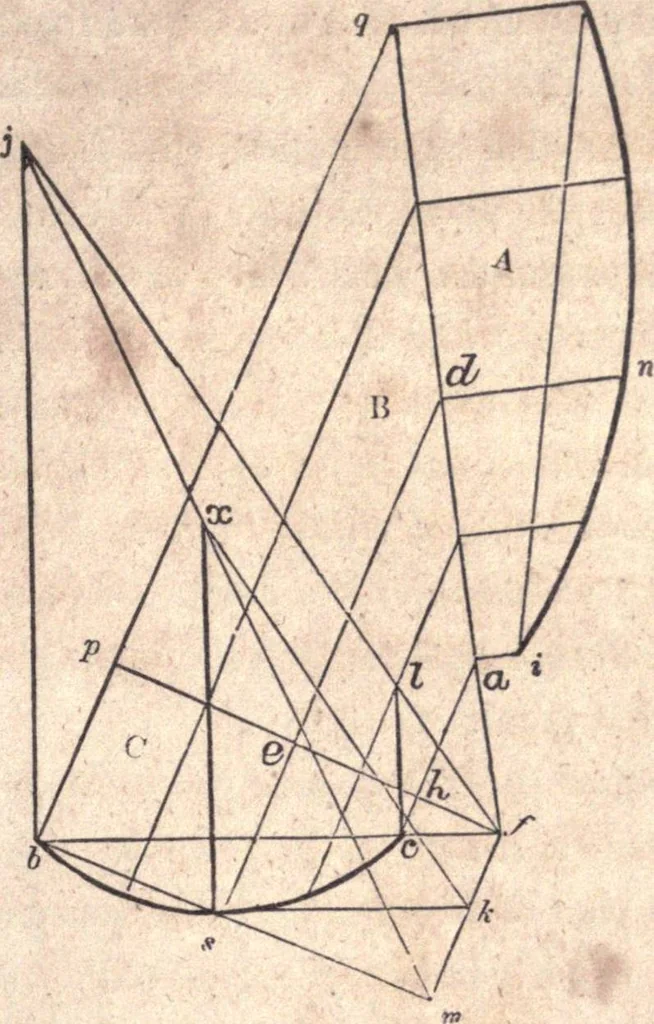

three given points in its curved surface:one perpendicularly over 6, at the height, b j ; one perpendicu-larly over 5, at the height, s x ; and the other over c, at the height,c I—these lines being drawn at right angles to the chord of thebase, b c. FromJ, through I, draw a line to meet the chord… … Fig. 234. plane of the base. This line can be proved to be the intersectionof these planes in another way ; from 6, through s, and from^,through .r, draw lines meeting at m ; then the point, w, will bein the intersecting line, as is shown in the figure, and also atFig. 293. From/, draw//>, at…
