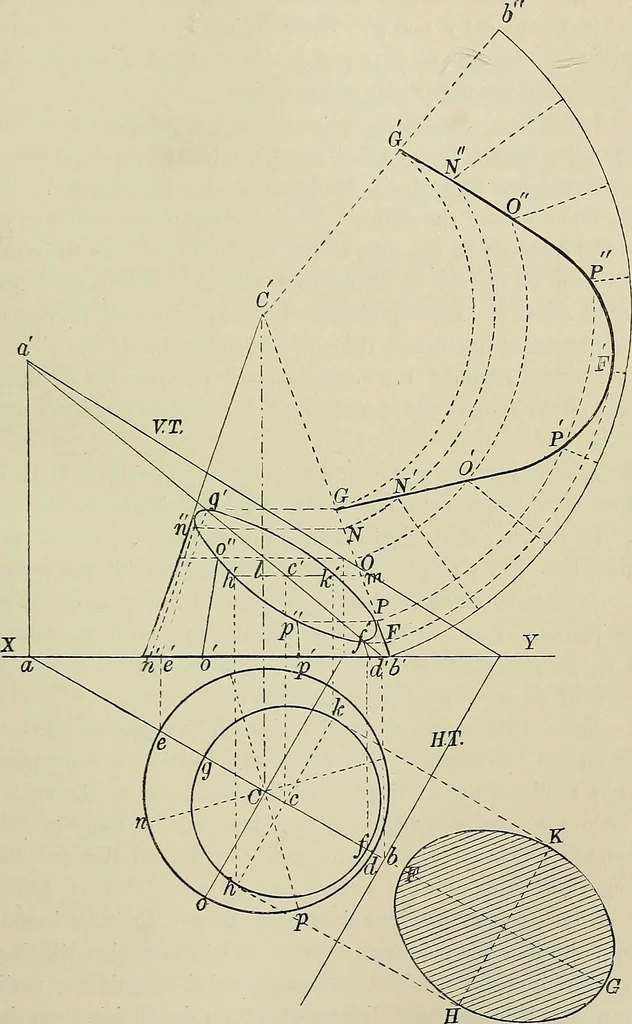

ane (Prob. 83 or 84). First assume a vertical plane perpendicular to the cuttingplane passing through the axis of the cone. Draw the line ahperpendicular to the H.T. Draw a perpendicular to XY froma till it meets the V.T. in a. Draw the projector hh, and joinha. ah is the H.T. of the Y. plane, and… … Fig. 166. 362 SOLID GEOMETRY chap^ Join these points towards the vertex C, till they meet the lineay in the points / and g. Draw projectors from / and g tillthey meet the line ah in / and g. fg is the plan, and fg theelevation of the major axis of the ellipse. Bisect/f/ in c, and draw a line…
