The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry (1852)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 269

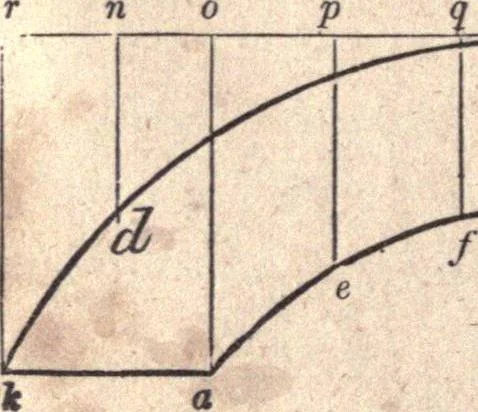

rail: at a convenient place for thejoint, as i, draw i n, at right angles to b j ; through n, draw ; A,at right angles to c h ; make d k equal to d &2 in Fig. 299, andfrom A-, draw k o, at right angles to e h ; at Fig. 299, make dh? equal to d h in Fig. 300, and draw A2 62, at right angles to… … Fig. 30L 402.— To describe the face-mould. At Fig. 299, from&, drawk r2, at right angles to r d ; at Fig. 300, make h r equal to A2 r2in Fig. 299, and from r, draw r s: at right angles to r h ; fromthe intersection of r s with the level line, m q, through i, draw st; at Fig. 299, make K1 W…
