The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry (1852)
Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 282

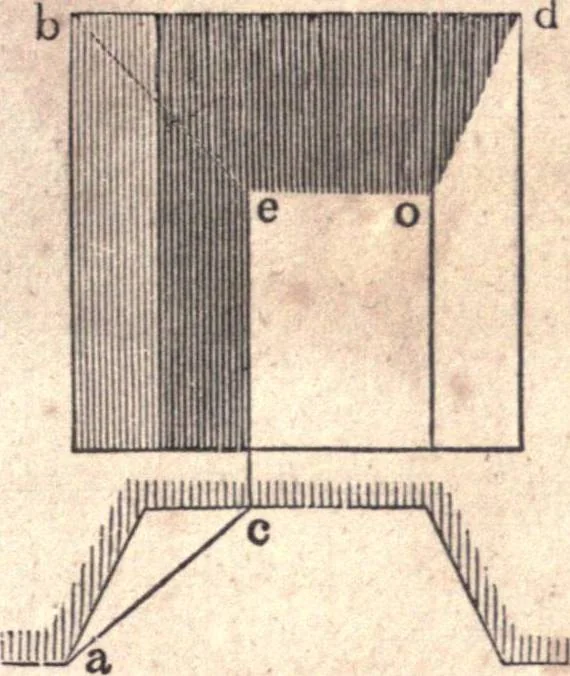

420.—To find the shadow in a recess, when the face of thewall is inclined, and the back of the recess is vertical. In Fig.322, A shows the section and B the elevation of a recess of this SHADOWS. 265 kind. From b, and from any other point in the line, b a, as a,draw the rays, b c and a e; from c,… … Fig. 323. 421.—To find the shadow in a fireplace. From a and b,(Fig. 323,) cast the rays, a c and b e, and from c, erect the per-pendicular, c e; from e, draw the horizontal line, e o, and join oand d; then c e, e o, and o d, will give the extent of the shadow. i I Fig. 324. 422.—To find the shadow…
Carpentry · Architecture
Internet Archive · California Digital Library · Public Domain Mark 1.0. Free to use for anything.
