The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry (1852)

Hatfield, R. G. (Robert Griffith), 1815-1879 · New York : J. Wiley · leaf 41

An illustration from The American house-carpenter; a treatise upon architecture, cornices and mouldings, framing, doors, windows, and stairs. Together with the most important principles of practical geometry, 1852, leaf 41

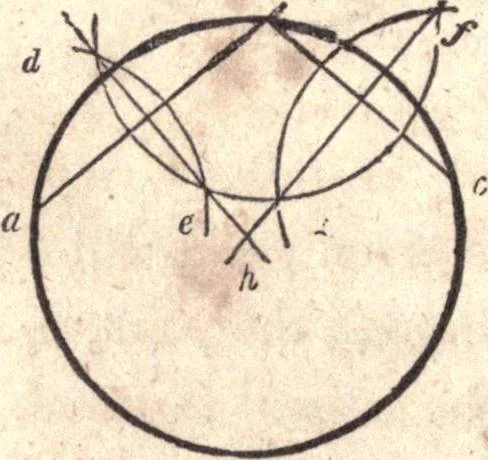

a line to the centre d; bisect a d at e ; upon e, with the radius,e a, describe the arc, afd;fis the point of contact required. If/ and d were joined, the line would form right angles withthe tangent, b c. (See Art. 156.) b … Fig. 44. 85.— Through any three points not in a straight line, todraw a circle. Let a, b and c, (Fig. 44,) be the three givenpoints. Upon a and b, with any radius greater than half a b,describe arcs intersecting at d and e ; upon b and c, with anyradius greater than half b c, describe arcs…
