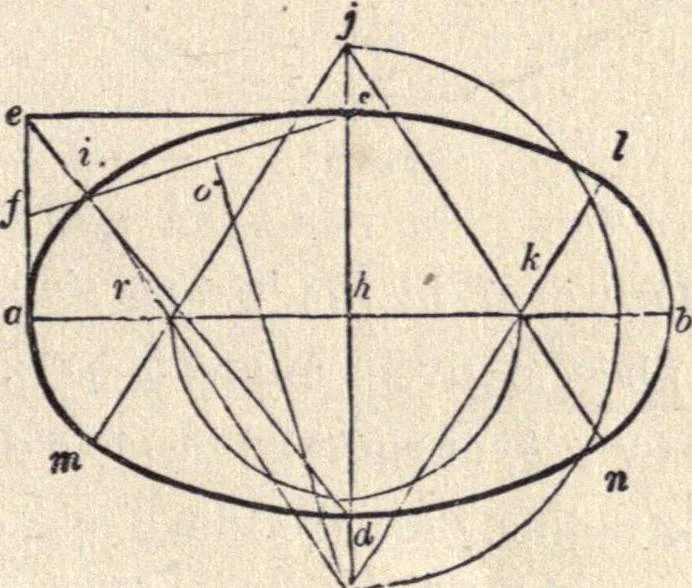

e radius,and a 2 for the other; i is found by taking b 3 for one radius, anda 3 for the other, always using the foci for centres. Then bytracing a curve through the points, c, g, h, t, 6, &c., the ellipsewill be completed. This problem is founded upon the same principle as that of thestring.… … Fig. 86. 120.— To describe a figure nearly in the shape of an ellip-sis, by a pair of compasses. Let a b and c d, (Fig. 86,) begiven axes. From e, draw c e, parallel to a b ; from a, draw a e,parallel to c d; join e and d; bisect e a in/; join/and c, inter-secting e d in i; bisect i c in o ; from…
