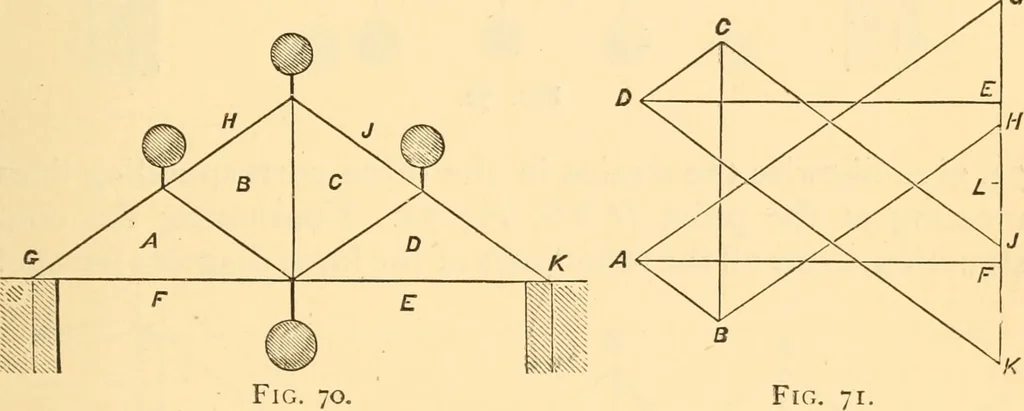

g its several lines parallelwith the lines oi Fig. 70, as indicated by the letters (see Art.205), commencing with GF, the load on the support G {Fig.70). Draw from F and G the two lines FA and G A paral-lel with these lines in Fig. yo. Their point of intersectiondefines the point A. From this the… … Fig. 70. 207.—Force Diagrram for Truss in Fig 61.—For this trusswe have, in Fig. 72, a similar design, properly prepared byweights and lettering; and in Fig. 73 the force diagram ap-propriate to it. In the construction of this diagram, proceed as directedin the previous example, by first…
