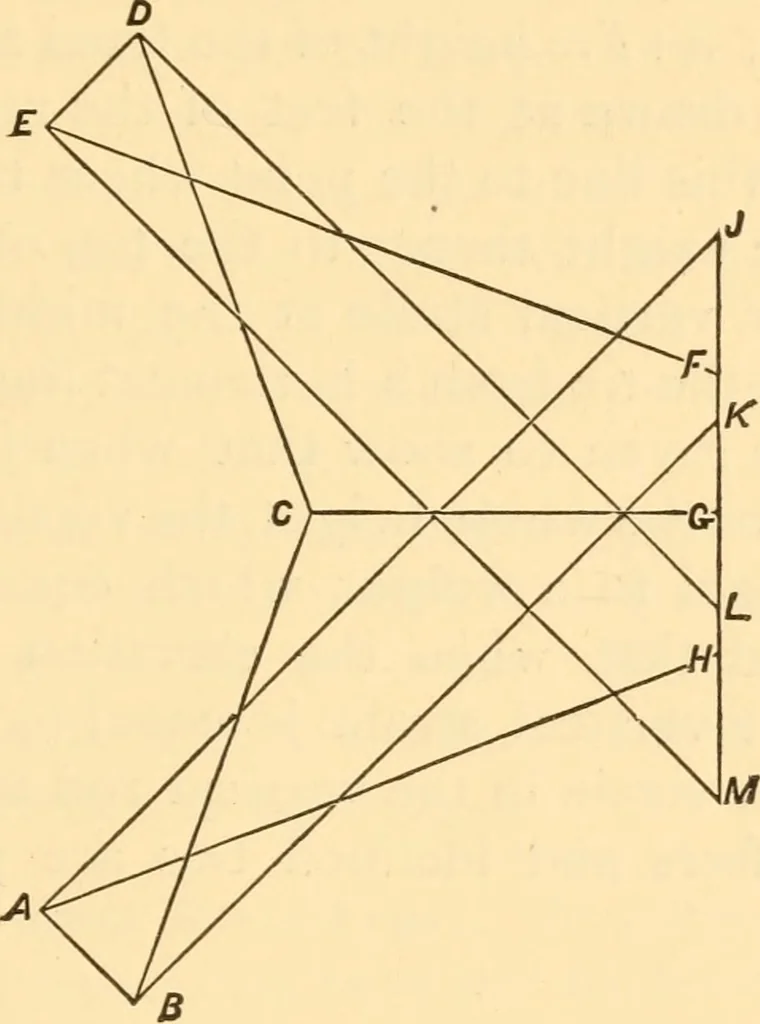

woloads FG and GH oi Fig. 80. Then H J represents onehalf of the whole weight of the truss, and therefore the reac-tion of the support J. From H and J draw lines par-allel with A H and A J oi Fig. 80, and the sides of the tri-angle A H y will give the strains in the three lines concen-trating in… … Fig. 81. 212.—Roof-Trus§: Effect of Elevating the Tie-Beam.— From Arts. 670, 671, Transverse Strains^ it appears that the
