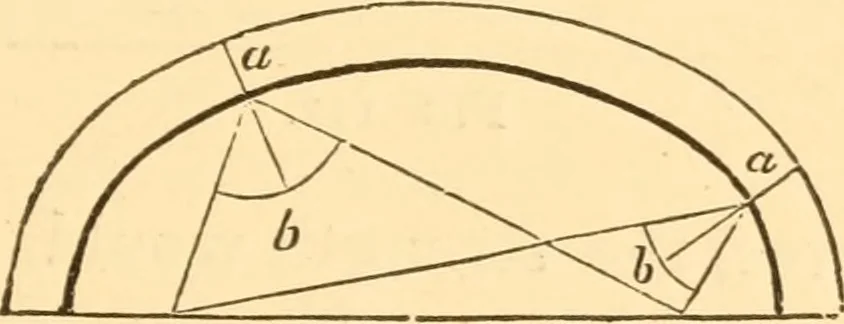

. The tie-beams b d, b d, if made of suffi-cient size to resist the compressive strain acting upon themfrom the load at b, will be more than large enough to resistthe tensile strain upon them during the laying of the firstpart of the arch-stones below a and c. 248.—ArcSi-Stones : Joiiit§.— In an… … Fig. 110. joints tend toward the centre of the circle ; in an ellipticalarch, the joints may be found by the following process:To find the direction of the joints for an elliptical arch; / ^ // f A/^ e \ kfY^ J Fig. III. a joint being wanted at a {Fig. 110), draw lines from thatpoint to the foci,/…
