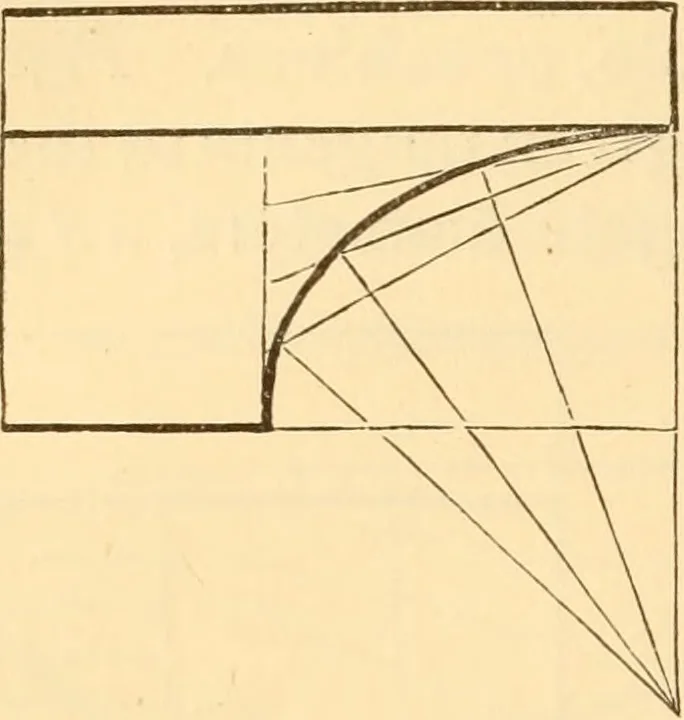

An illustration from The American house carpenter. A treatise on the art of building. Comprising styles of architecture, strength of materials, and the theory and practice of the construction of floors, framed girders, roof trusses, rolled-iron beams, tubular-iron girders, cast-iron girders, stairs, doors, windows, mouldings, and cornices; together with a compend of mathematics. A manual for the practical use of architects, carpenters, stair-builders, and others, 1880, leaf 371
e curve, a bshould be made short in proportion to ac, 3(4—The Grecian Cavetto.—In order to describe this,Figs.2Qo^Vid 201, having the height and projection given,see Art. 551. 315.—The Grecian Cyma-Recta.—When the projectionis more than the height, as at Fig. 202, make ^<^ equal to the 328…
