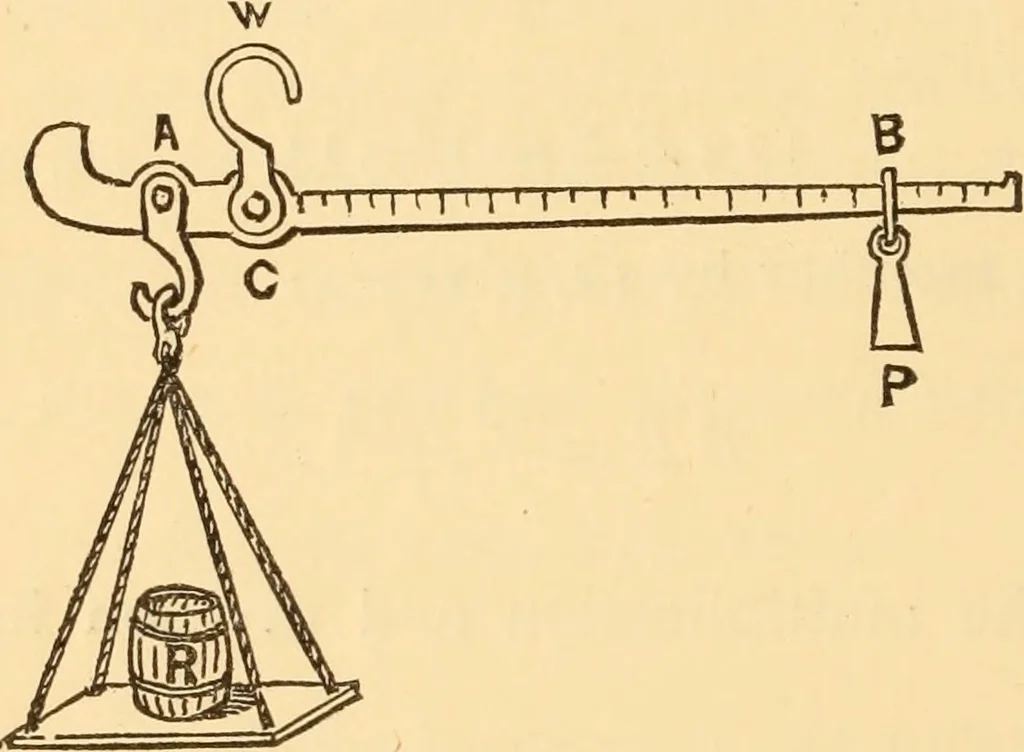

weight P be too far from the fulcrumC the end of the bar B will fall, but if it be too near it willrise. 376,—The liCver Exemplified toy the Steelyard. — To exemplify the principle of the lever, let the bar A B {Fig.272) be balanced accurately with the scale platform, butwithout the weights R and… … Fig, 272, the weight P to equal 5 pounds, what at this pomt will bethe weight of i^ ? By trial we shall find that R = 100 pounds.Again, if a portion of R be removed, then the weight Pwould have to be moved along the bar B C to produce anequilibrium ; suppose it be moved until its distance from Cbe…
