The American house carpenter. A treatise on the art of building. Comprising styles of architecture, strength of materials, and the theory and practice of the construction of floors, framed girders, roof trusses, rolled-iron beams, tubular-iron girders, cast-iron girders, stairs, doors, windows, mouldings, and cornices; together with a compend of mathematics. A manual for the practical use of architects, carpenters, stair-builders, and others (1880)

Hatfield, R. G. (Robert Griffith), 1815-1879, Hatfield, O. P., ed · New York, J. Wiley & sons · leaf 610

An illustration from The American house carpenter. A treatise on the art of building. Comprising styles of architecture, strength of materials, and the theory and practice of the construction of floors, framed girders, roof trusses, rolled-iron beams, tubular-iron girders, cast-iron girders, stairs, doors, windows, mouldings, and cornices; together with a compend of mathematics. A manual for the practical use of architects, carpenters, stair-builders, and others, 1880, leaf 610

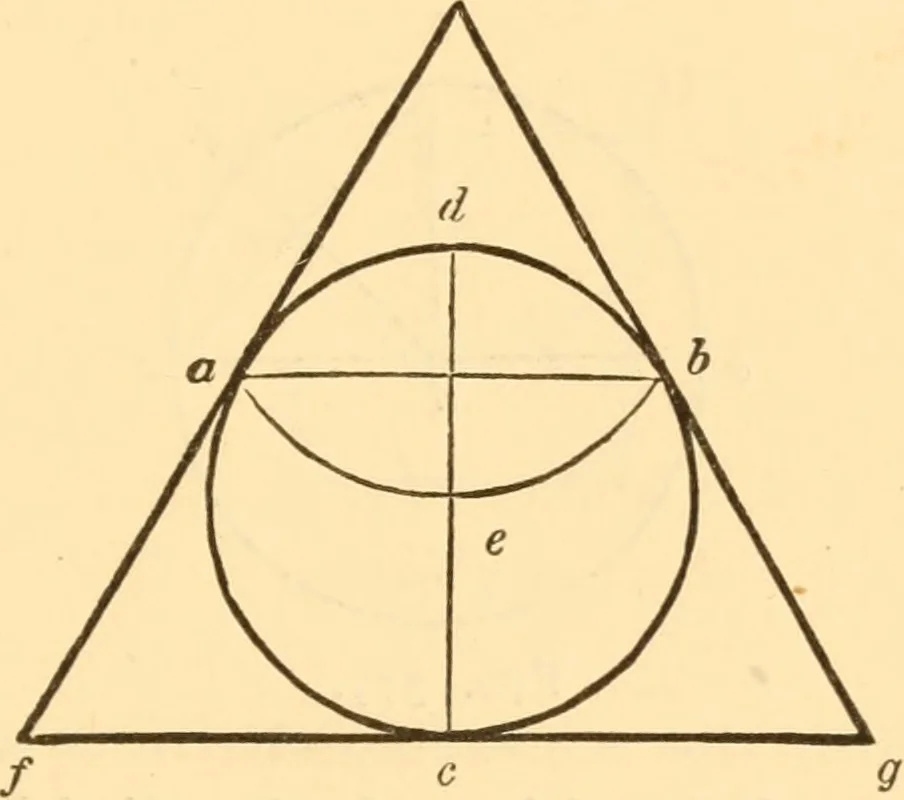

oin a and b\ draw /^at right anglesto dc; make fc and eg each equal to ^^; from /, through«, draw fh, also from g, through b, draw gh\ then fghwill be the triangle required. 624-,—To Find a Right Liine nearly Equal to the Cir-cumference of a Circle.—Let abed {Fig. 376) be the given A RIGHT LINE… … Fig. 375. length of the semi-circle adc\ and twice gf will nearlyequal the circumference of the circle ab c d,2iS was required.Lines drawn from e, through any points in the circle, as<?, 0 and 0, to /, p and /, will divide gf in the same way asthe semi-circle adc is divided. So, any portion of a…
