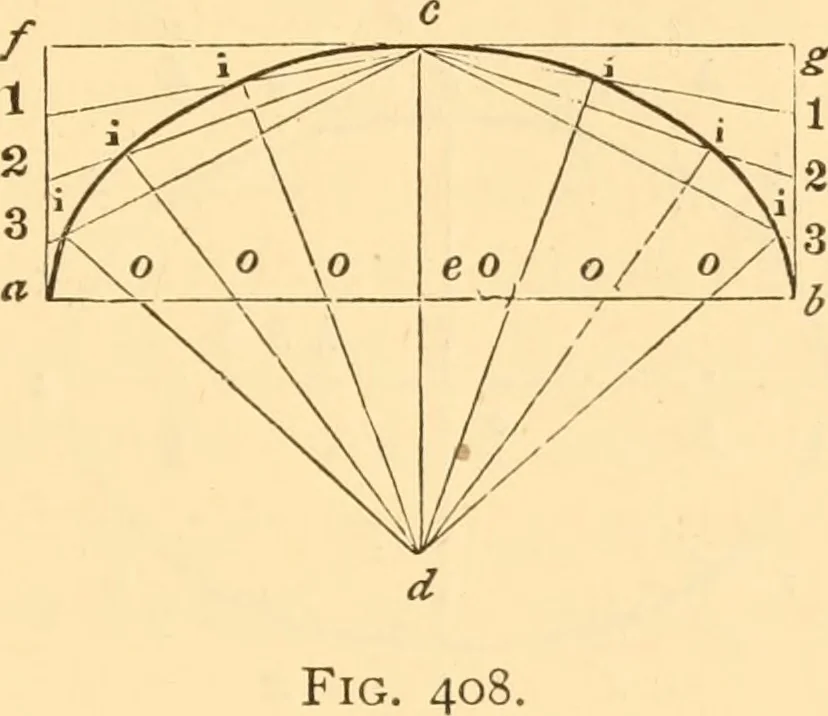

m, the curve can be made quitecorrect. This method is mostly used in tracing face-mouldsfor stair hand-railing. 55(.—To Describe an Ellipsis by Intersection of Lines. ■Let ab and cd {Fig. 408) be given axes. Through c, draw ELLIPSE BY INTERSECTION OF LINES. 589 fg parallel X.o ab\ from a and b draw… … intersecting those drawn to c; then a curve, traced throughthe points i, i, i, will be that of an ellipsis. Where neither trammel nor string is at hand, this, per-haps, is the most ready method of drawing an ellipsis. Thedivisions should be small, where accuracy is desirable. Bythis method an…
