The American house carpenter. A treatise on the art of building. Comprising styles of architecture, strength of materials, and the theory and practice of the construction of floors, framed girders, roof trusses, rolled-iron beams, tubular-iron girders, cast-iron girders, stairs, doors, windows, mouldings, and cornices; together with a compend of mathematics. A manual for the practical use of architects, carpenters, stair-builders, and others (1880)
Hatfield, R. G. (Robert Griffith), 1815-1879, Hatfield, O. P., ed · New York, J. Wiley & sons · leaf 633

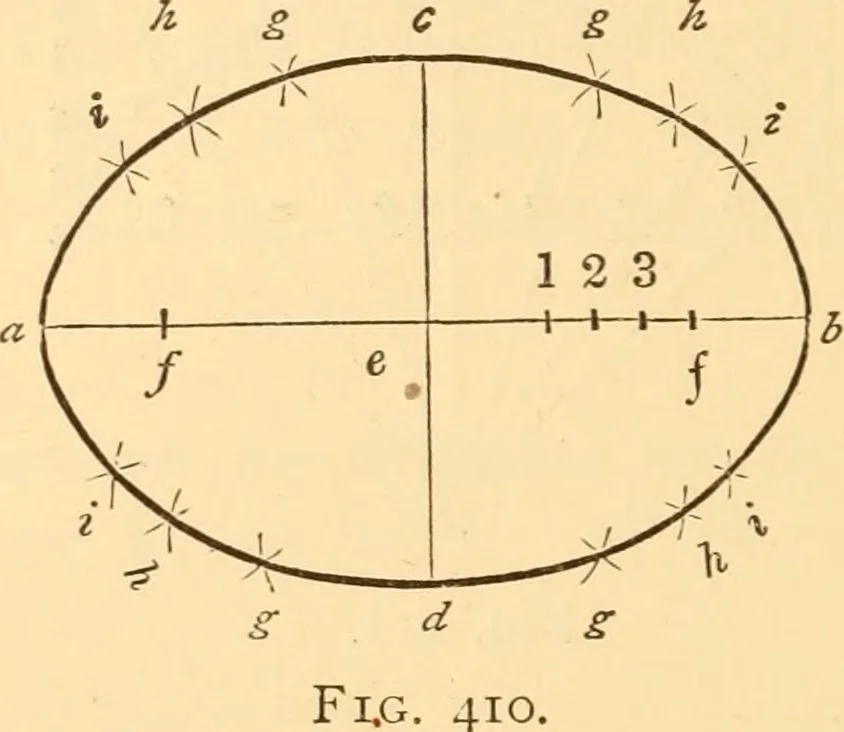

ig. 409) are conjugate diameters: fg\^ drawn par-allel to ab^ instead of being at right angles to r^; also, faand gb are drawn parallel to cd, instead of being at rightangles to a b. 590 PRACTICAL GEOxMETRY. 552-—To Describe an Ellipsis by Intersecting Arcs»— Let a b and c d {Fig. 410) be given… … radius, describe arcs intersecting- the others at g,g,g, and^;then these points of intersection will be in the curve of theellipsis. The other points, Ji and /, are found in like manner,viz.: h is found by taking b2 for one radius, and a2 for theother; i is found by taking b 3 for one radius, and a…
Carpentry · Architecture · Building
